Keyboard controller board (FRU P/N: 5454860 - Includes 5402819 plus screws)

1.) Remove cable connectors shown in the figure below from the controller board (5402819) one after
the other slowly. Please take care while removing cables from the controller board.
2.) Remove the 4 screws from the controller board shown in the figure below.
PROPRIETARY TO GE
8
EVISION

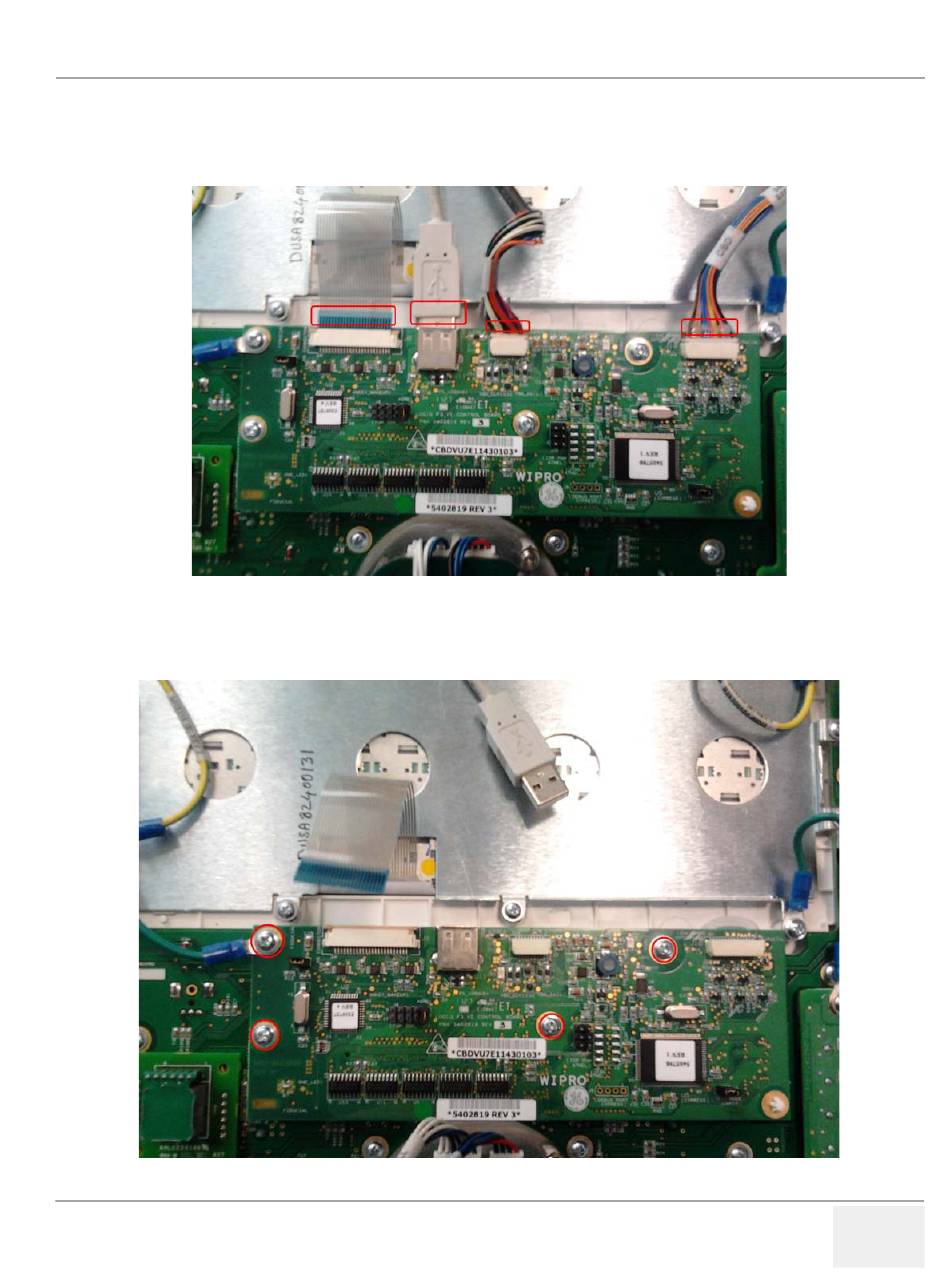

Figure 8-19 Cable connectors
Figure 8-20 Controller board screws
