Preparations; Removal Procedure; Rear Panel Assy (Fru P/N: 5313708-1) - Logiq P3; Tools - GE LOGIQ P3 PRO Service Manual

GE
D 5308917-100, R
IRECTION
8-5-4

Rear Panel Assy (FRU P/N: 5313708-1) - LOGIQ P3

Rear Panel Assy (FRU No. 5368251-1) - LOGIQ P3BT10
This is a description on how to remove and replace the Rear Panel Assy.
8-5-4-1

Tools

• Common Phillips screwdrivers
8-5-4-2

Needed Manpower

1 persons, 15 minutes
8-5-4-3

Preparations

• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-5-4-4

Removal Procedure

1) Remove the rear cover . Refer Refer

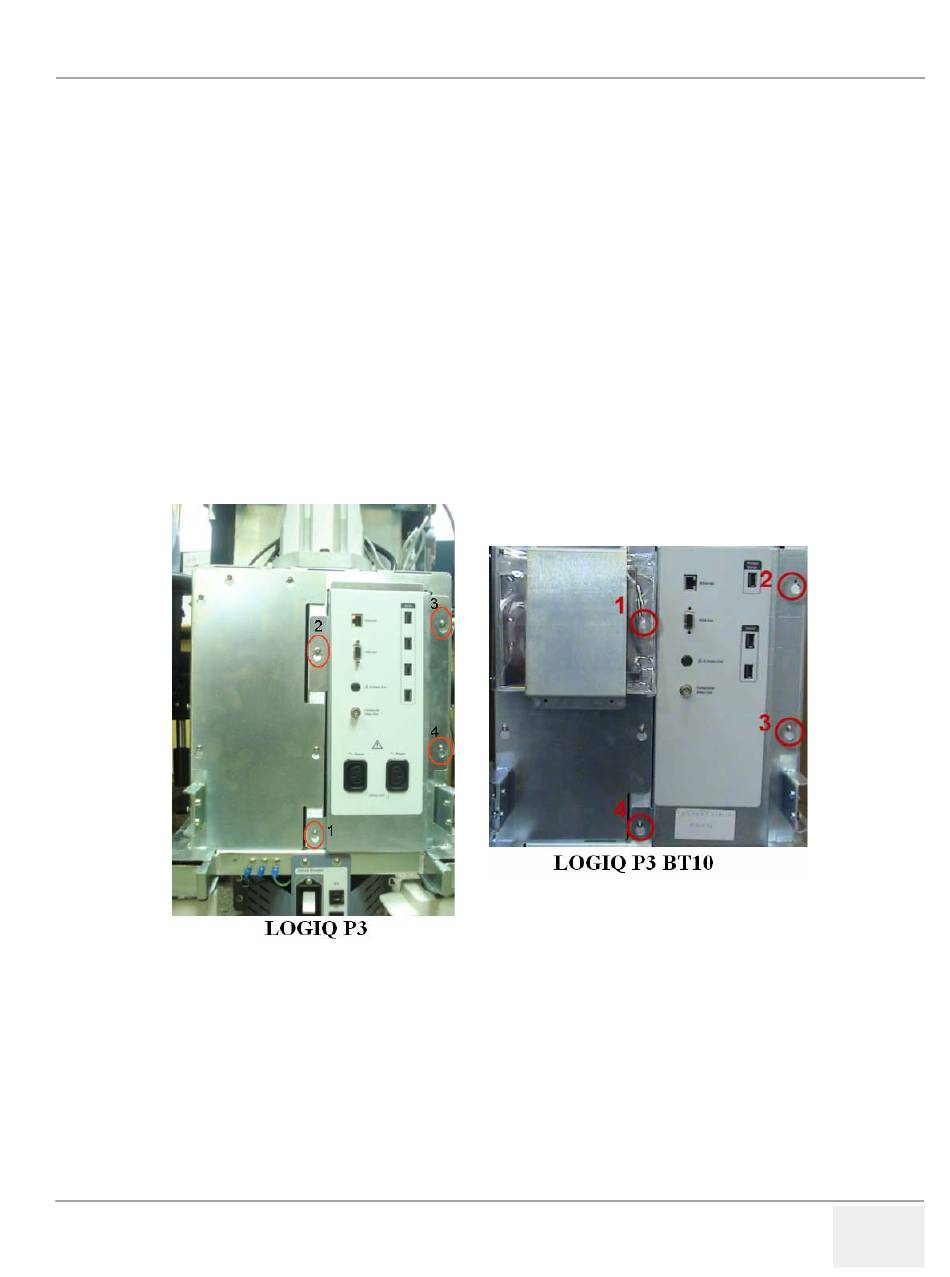

2) Loosen the Five screws (1,2,3,4) of rear panel assembly of the system. Refer
8-61
3) Push upwards & pull out the Rear panel assembly by the slot marked (A,) in the
8-62
PROPRIETARY TO GE
8
EVISION
Figure 8-68 Rear pannel Assembly
Chapter 8 Replacement Procedures
section 8-4-3 on page 35
LOGIQ P3 S M
ERVICE ANUAL
Figure 8-68 on page
Figure 8-69 on page
8-61
