General Procedure

SYSTEM REQUIRES ALL COVERS
CAUTION
Operate this unit only when all board covers and frame panels are securely in place. The covers
are required for safe operation, good system performance and cooling purposes.
NOTICE
Lockout/Tagout Requirements (For USA only)
Follow OSHA Lockout/Tagout requirements by ensuring you are in total control of the Power Cable on
the system.
TAG
&
LOCKOUT
Signed Date
4-3-1

Power On/Boot Up

After AC power cable is connected correctly to the transformer & Circiut breaker is switched on, the
power is applied to the scanner & the system is in Stand By mode. In the Control panel Power On/Off
key will be Amber color.

Boot Up

4-3-1-1
In the control Panel press the power On/Off key the led color will turn in Green color & the system will
boot.
LOGIQ P3
A. Circuit Breaker
B. Power Cable
4-2
PROPRIETARY TO GE
8
EVISION

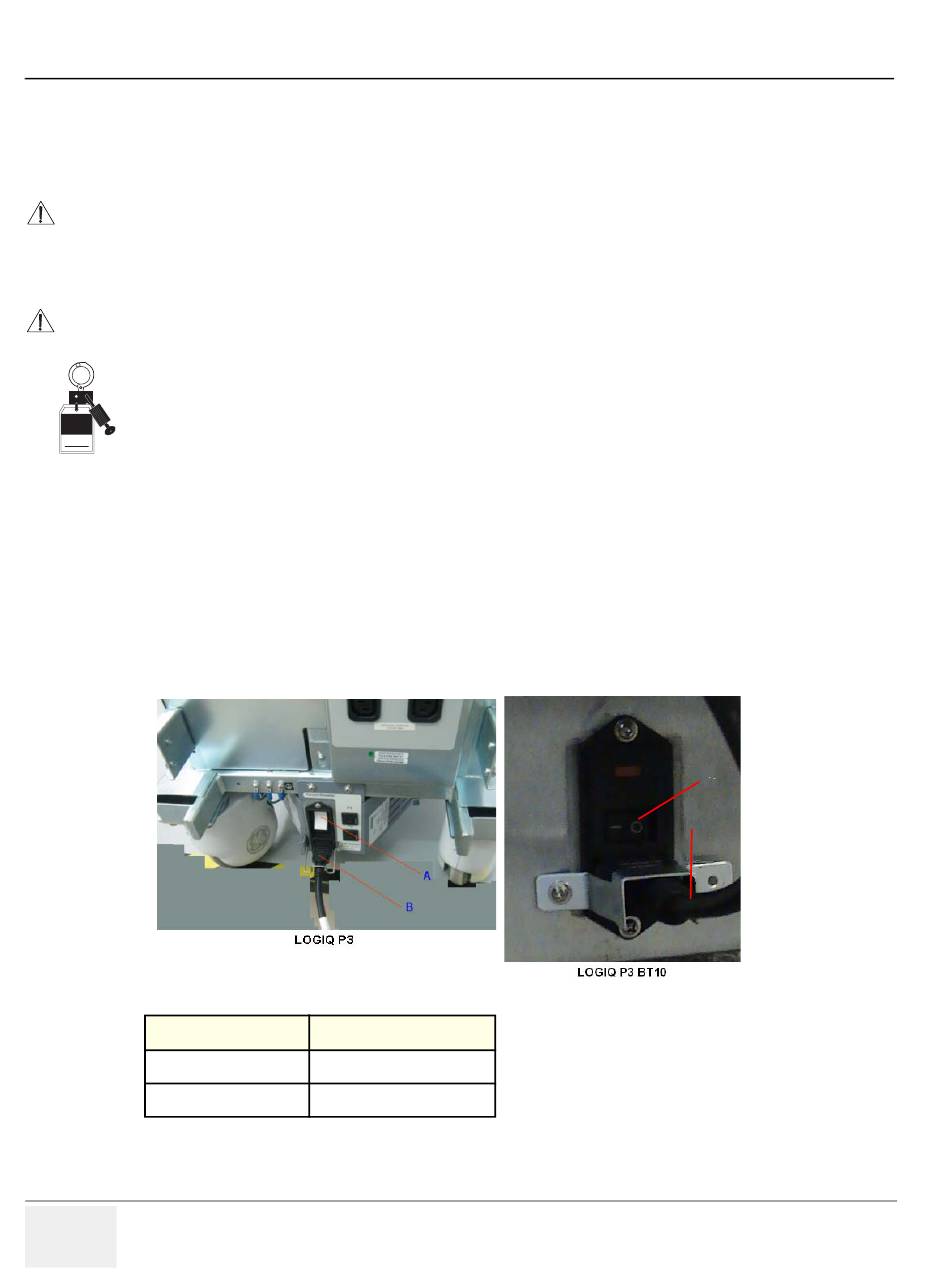

Figure 4-1 Connect AC adapter
LOGIQ P3 BT10
a. Circuit Breaker
b. Power Cable
Section 4-3 - General Procedure
LOGIQ P3 S M
ERVICE ANUAL
