8-4-7

Rear EMI Cover (Part of EMI Cover Assy FRU P/N: 5315111)

This is a description on how to remove and replace the Rear EMI Cover (P/N: 5308951 - Not a FRU).
8-4-7-1

Tools

• Common phillips screwdrivers
8-4-7-2

Needed Manpower

• 1 person, 15 minutes
8-4-7-3

Preparations

• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-7-4

Removal Procedure

1) Remove Right cover. Refer
2) Remove rear cover. Refer
3)Use the scewdriver and Loose the Five screws (1,2,3,4,5)
4) Remove Rear-side EMI cover. Refer
cover.
LOGIQ P3
8-4-7-5

Mounting procedure

Install the new parts in the reverse order of removal
8-4-7-6

Functional Checkout Procedure

Functional Test
Do Visual Inspection and ensure
no scratches observed and
fitment is done properly
PROPRIETARY TO GE
8
EVISION
section 8-4-3 on page 35
section 8-4-3 on page 35
Rear-side
EMI cover

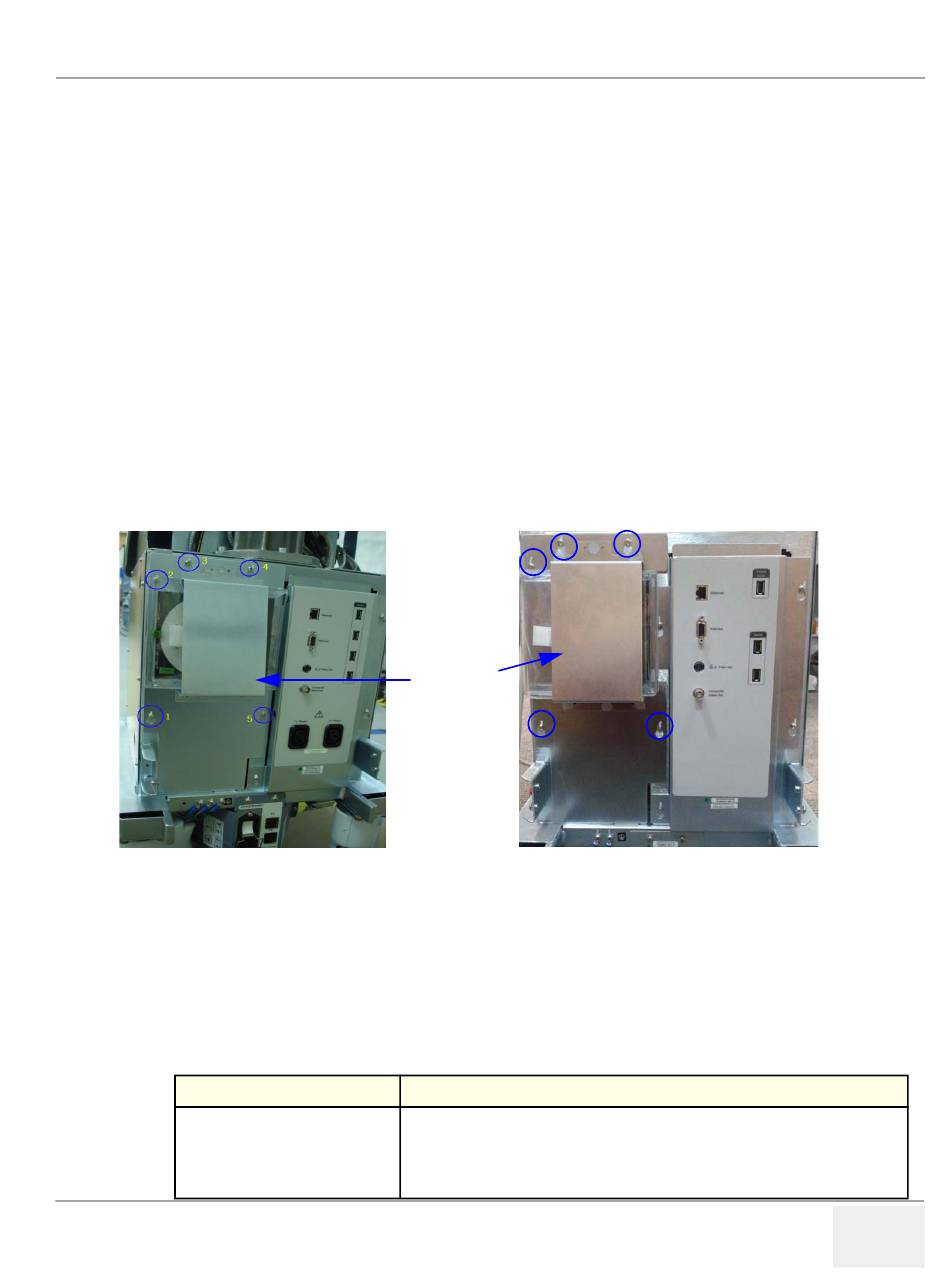

Figure 8-49 Rear-side EMI cover
Service Manual Direction 5308917-100, Section 8-4-7. Equipment passes all required
Chapter 8 Replacement Procedures
for details on how to remove Right cover.
Figure 8-49 on page 8-43
LOGIQ P3 BT
Debrief Script
tests and is ready for use.
LOGIQ P3 S
ERVICE
for details on how to remove Rear
M
ANUAL
8-43
