5-1-9

Wiring

• TX64: LOGIQ P3 Transmit board
• RX64: LOGIQ P3 Front end processing board
• MST: LOGIQ P3 Master board
• PWR SW: Power Switch
• FPC: Flexible Print Circuit board
• PDB: Power Distribution Board
• SSR: Solid State Relay
PROPRIETARY TO GE
8
EVISION

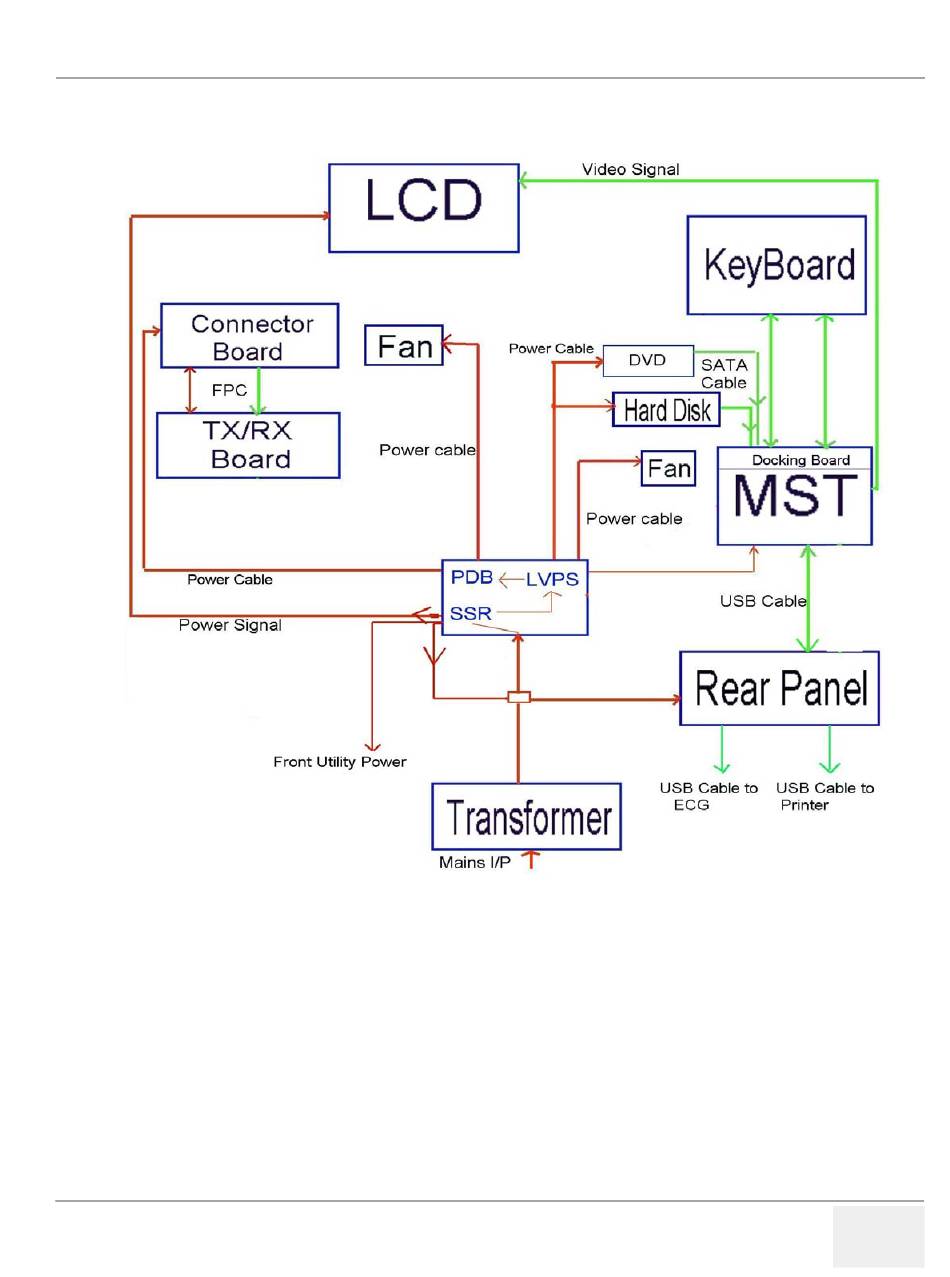

Figure 5-7 Wiring Diagram (LOGIQ P3)
