GE LOGIQ P3 PRO Service Manual page 265

GE
D 5308917-100, R
IRECTION
5) Remove the two flexi cable from TX board as shown below in
6) Remove the Screws fixed in Tx Pwa & seperate the RX PWA from TX PWA as shown in
on page 8-71
8-6-0-5 Mounting procedure
1.) Install the new parts in the reverse order of removal.
PROPRIETARY TO GE
8
EVISION

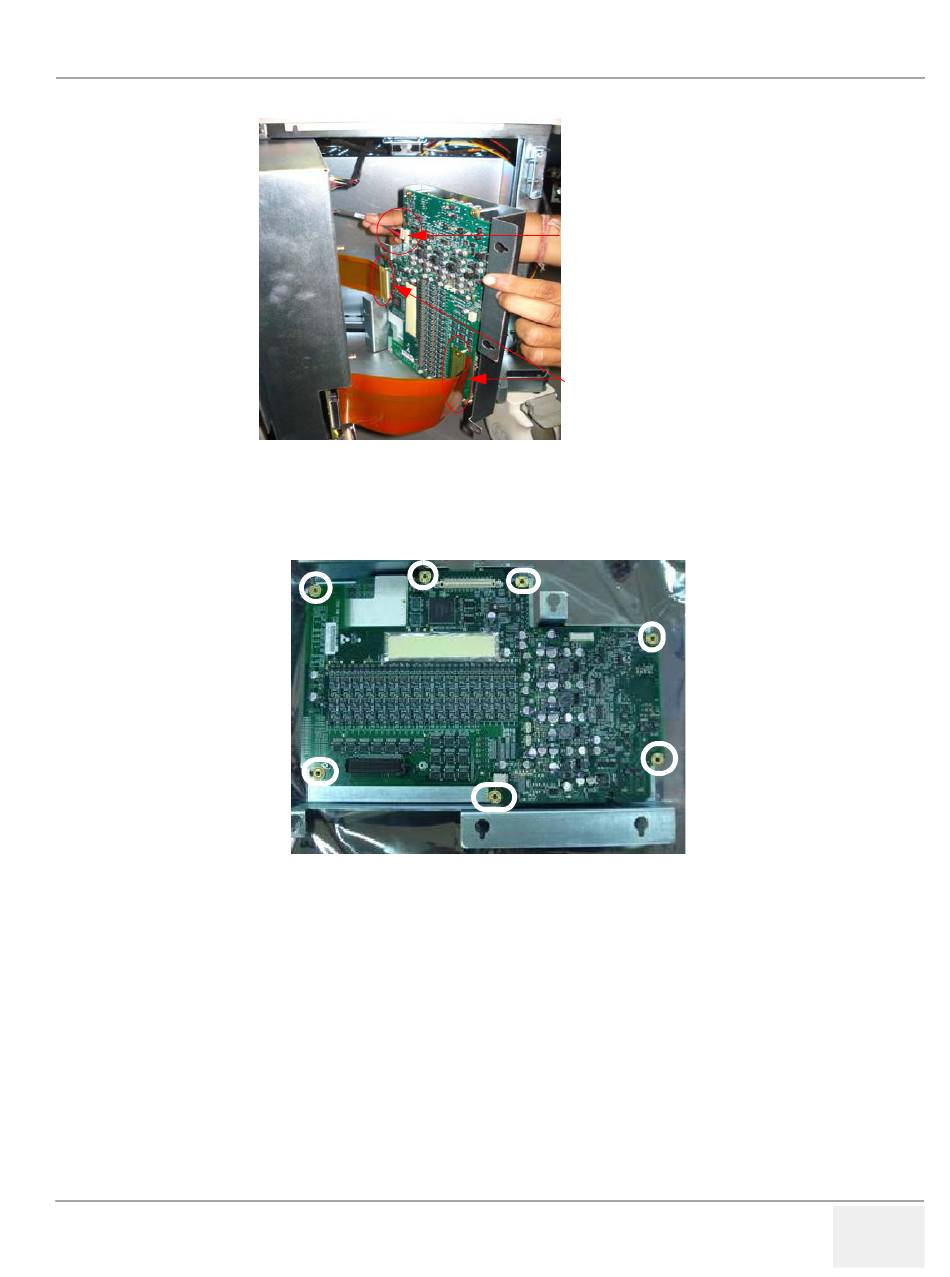

Figure 8-78 Removing TX conn board cable & Flexi cable
Figure 8-79 Tx-RX combined
Chapter 8 Replacement Procedures
LOGIQ P3 S
Figure 8-78 on page 8-71
Tx conn board cable
Flexi cable
M
ERVICE ANUAL
Figure 8-79
8-71
