Chapter 9
2) Detach the fixing/feeding unit. (page 9-18)Reference[Removing the
Fixing/Feeding unit]
3) Remove the external delivery roller. (page 9-24)Reference[Removing
the External Delivery Roller]
4) Remove the sensor support plate (the external delivery sensor/the delivery
jam sensor). (page
9-32)Reference[Removing the Delivery Jam
Sensor]

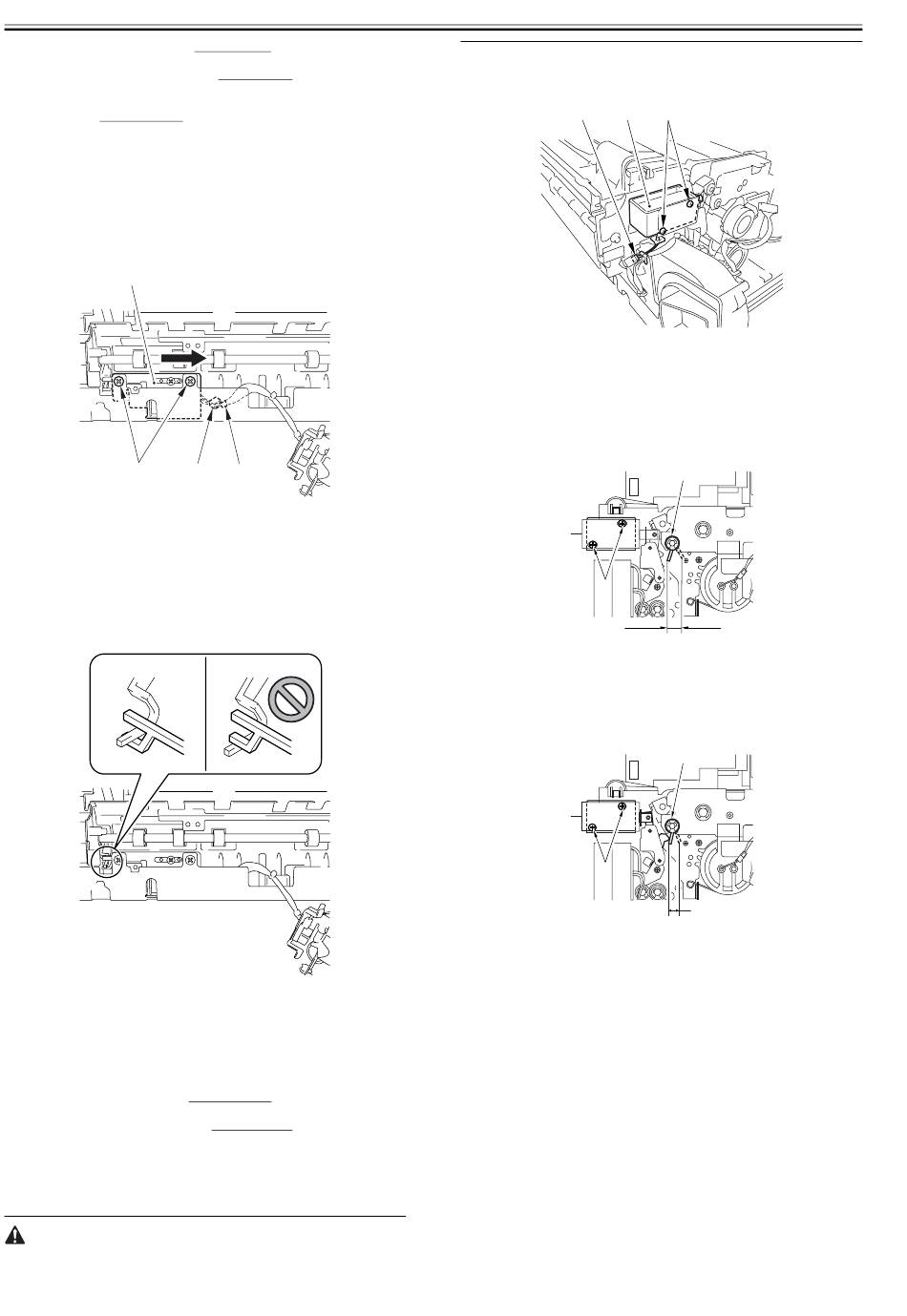

9.5.21.2 Removing the Delivery Flapper Solenoid (SL5)

iR5065 / iR 5055 / iR5075 / / /
1) Free the harness from the wire saddle [4] and slide the delivery flapper
solenoid [3] to the side to remove.
- 1 connector [1]
- 2 screws [2]
[3]
[2]
9.5.21.3 Points to Note When Mounting the Delivery
Flapper Solenoid (SL5)
iR5065 / iR 5055 / iR5075 / / /
When mounting the delivery flapper solenoid, be sure that the delivery flap-
per solenoid arm [1] and the sensor arm [2] position at the correct relative
positions.
9.5.22 Fixing Cleaning Web Solenoid
9.5.22.1 Before Removing the Fixing Web Solenoid (SL9)
iR5065 / iR 5055 / iR5075 / / /
1) Detach the fixing front cover. (page 10-14)Reference[Removing the
Fixing Front Cover]
2) Remove the fixing drive assembly. (page 10-20)Reference[Removing
the Fixing Drive Assembly]
9.5.22.2 Removing the Fixing Web Solenoid (SL9)
iR5065 / iR 5055 / iR5075 / / /
Mark the screw positions before removing the screws in the next step.
9-36
[1]
[4]
F-9-123
F-9-124
1) Remove the fixing web solenoid [3].
- 1 connector [1]
- 2 screws [2]
0015-5075
9.5.22.3 Adjusting the Fixing Web Solenoid (SL9)
iR5065 / iR 5055 / iR5075 / / /
a. For New Fixing Webs
Adjust the solenoid position with the screw [2] so that the drive lever [1]
can shift up to 8.6mm.
0015-5076
b. For Used Fixing Webs
Before removing the solenoid, check the position (A) of the drive lever
[1] when the solenoid is turned on. After replacing the solenoid, adjust the
drive lever [1] position with the screw [2] so that it positions as it did
before replacement.
9.5.23 Upper Separation Claw
9.5.23.1 Removing the Upper Separation Claw
iR5065 / iR 5055 / iR5075 / / /
1) Open the front cover [1].
0015-8303
0015-5077
[1]
[3]
[2]
F-9-125
[1]
[2]
8.6mm
F-9-126
[1]
[2]
A
F-9-127
0015-9979
0015-5079
