Chapter 10

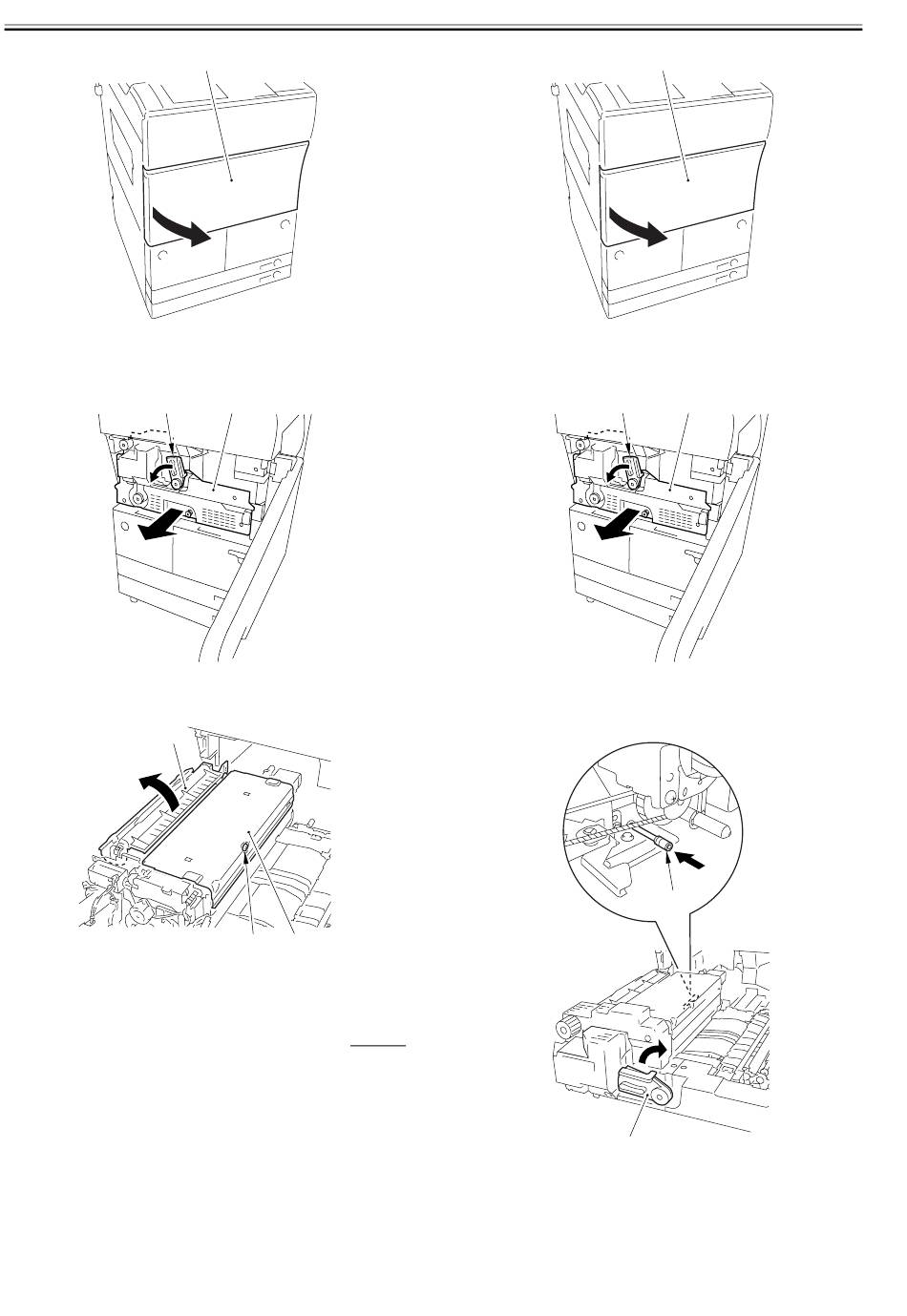

2) Turn the fixing/feeding unit releasing lever [1] counterclockwise to
unlock. Hold the lever [1] to slide out the fixing/feeding unit [2] fully.
(The duplexing feed unit will also be slid out.)
[1]
3) Open the delivery unit [1] and detach the fixing upper cover [3].
- 1 screw [2]
[1]

10.5.1.13 Fixing Cover (Lower)

10.5.1.13.1 Removing the Fixing Front Cover
iR5065 / iR 5055 / iR5075 / / /
1) Open the front cover [1].
10-14
[1]
F-10-29
[2]
F-10-30
[3]
[2]
F-10-31
0015-9418
2) Turn the fixing/feeding unit releasing lever [1] counterclockwise to
unlock. Hold the lever [1] to slide out the fixing/feeding unit [2] fully.
(The duplexing feed unit will also be slid out.)
[1]
3) While pushing the rear hook shaft [1] of the fixing/feeding unit in the
direction of the arrow (to the machine's front), turn the fixing/feeding unit
releasing lever [2] clockwise to lock.
[2]
4) Remove the knob [2] and the fixing/feeding unit releasing lever [4].
- 2 screws [1,3]
[1]
F-10-32
[2]
F-10-33
[1]
F-10-34
