The machine has a mechanism to keep a record of jams that occur inside it, permitting the service person to check its history of jams in service mode.

SERVICE MODE:

COPIER>DISPLAY>JAM

Use it to indicate jam data.

COPIER>FUNCTION>CLEAR>JAM-HITS

Use it to indicate the machine's jam history.

8.3.2 Delay Jams

8.3.2.1 Cassette Pickup Assembly (right deck, left deck, cassette 3/4)

iR5065 / iR 5055 / iR5075 / / /

If the leading edge of paper does not reach the sensor within a specific period of time after the motor goes on, the machine will identify the condition as being a

delay jam.

right deck

left deck

Cassette 3

Cassette 4

8.3.2.2 Other Delay Jam

iR5065 / iR 5055 / iR5075 / / /

The machine identifies a delay jam occurring outside its cassette/deck pickup assembly as follows:

The length of time during which paper is moved from the sensor N-1 to the appropriate delay jam sensor N is monitored. If the appropriate delay jam sensor N does

not go on within a specific period of time after the sensor NB has gone on, the machine will identify the condition as being a delay jam.

8-8

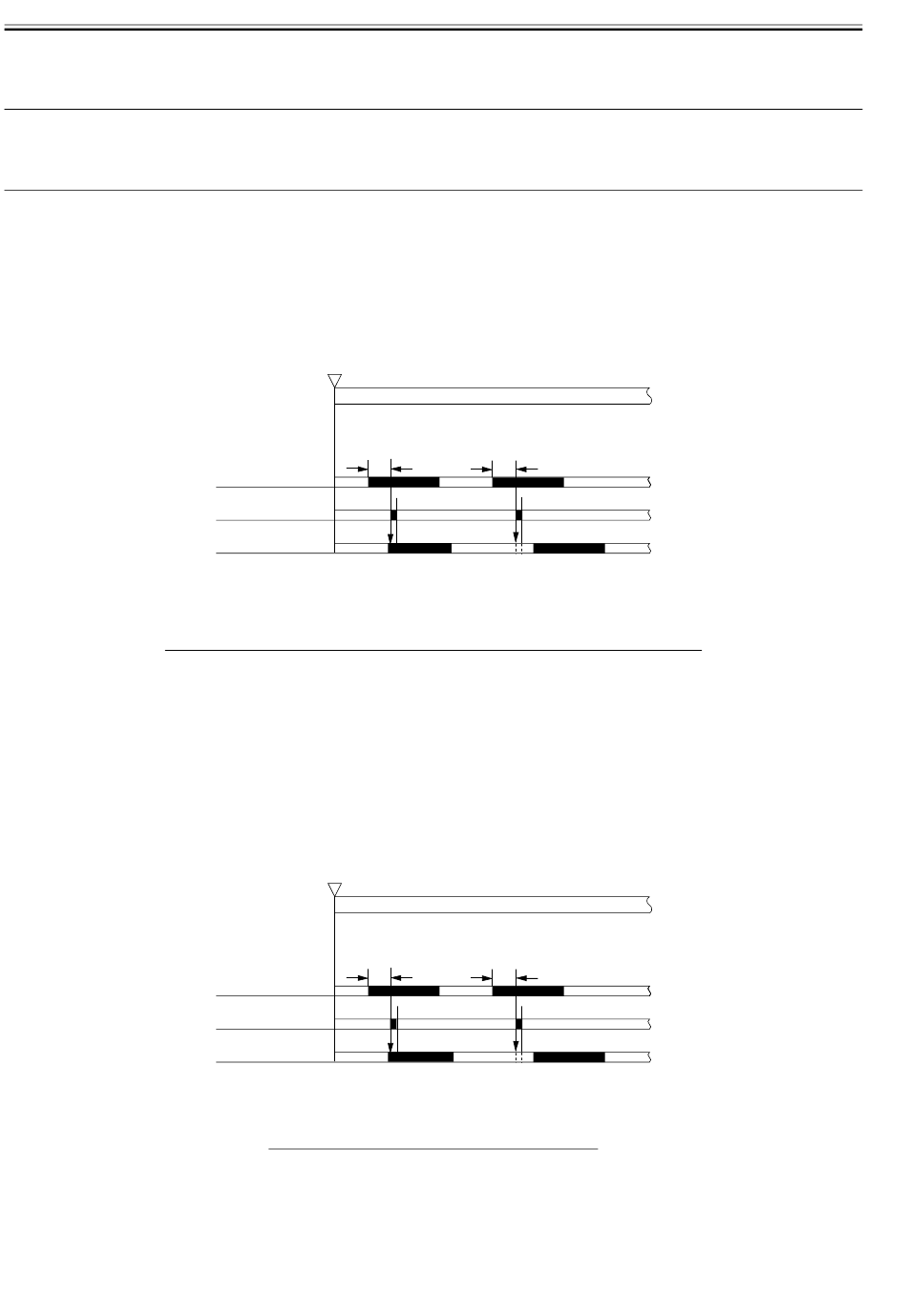

Start key ON

or PRINT setting recognized

Motor N-1

Jam check

Sensor N

[1] specific length of time of feed

Pickup

Motor N-1

assembly

right deck pickup motor(M11)
