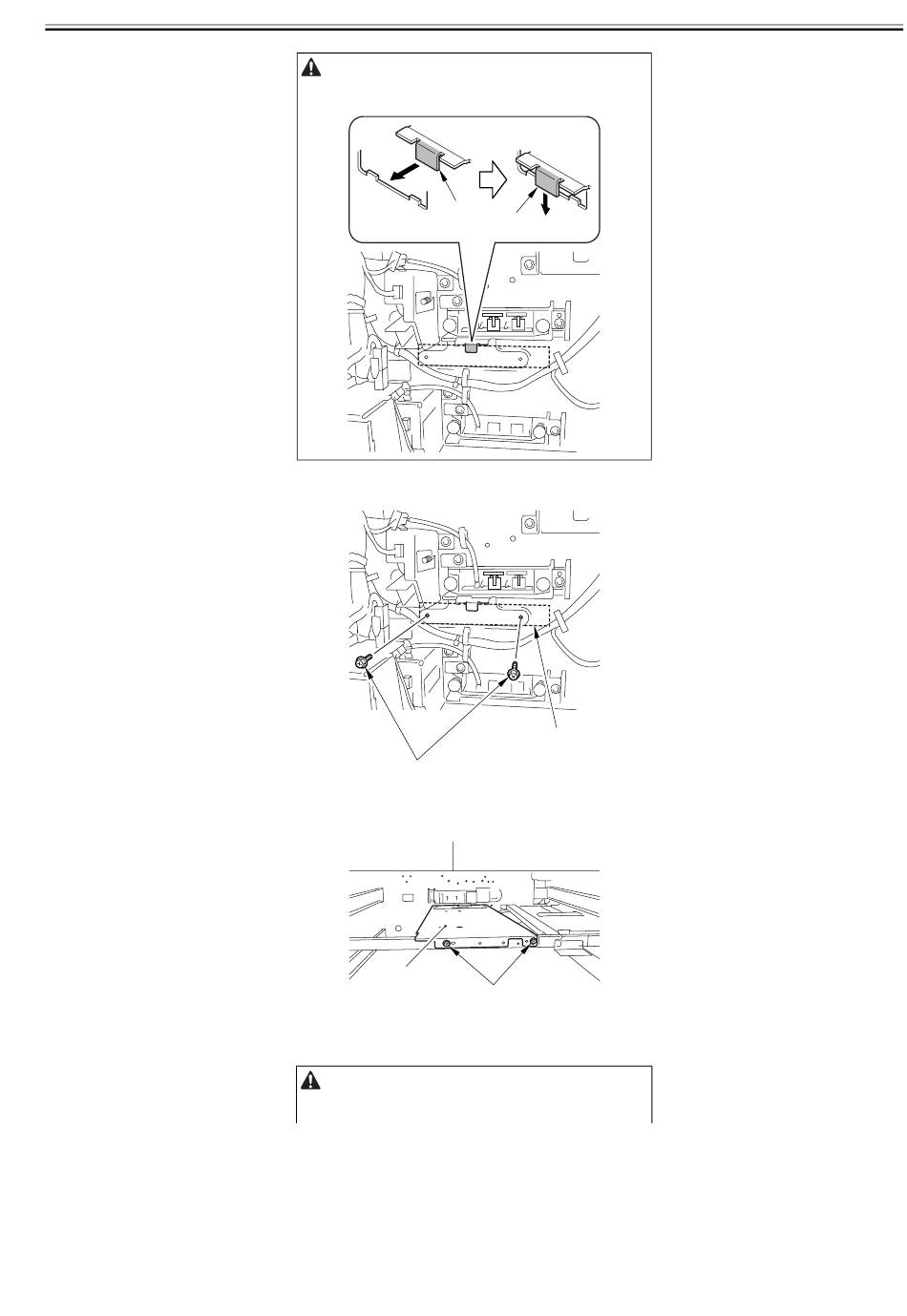

9) Secure the cassette stay [1] in place from the rear side of the host machine.
- 2 screws (M4X6) [2].
10) Secure the cassette stay [1] in place from the front side of the host machine.
- 2 screws [2] (M4X6)
11) Put the cassette heater connector [1] through the long hole [A], while at the same time hook the metal plate [B] on the rear side of the cassette heater [2] onto
the hole [C] of the cassette heater.
Make sure from the rear side of the host machine that the claw [A] of the
cassette stay is engaged appropriately.
[A]
[2]
F-2-108
[1]
F-2-109
Make sure that the heater cord guide [3] is fitted in place appropriately on to
the long hole [A].
[A]
[1]
[2]
