Canon imageRUNNER 5065 series Service Manual page 504

Chapter 17
Sub-item Description
DPOT-K COPIER>FUNCTION>DPC>OFST
potential reflecting the value after execution; in V
VL1T light-area potential target value; in V
VL1M light-area potential measurement value; in V
VL2M light-area potential measurement value for developing bias; in V
VDT dark-area potential target value; in V
VDM dark-area potential measurement value; in V
VL2M-P light-area potential measurement value for developing bias for printer image; in V
VL1M-P light-area potential measurement value for printer image; in V
VL1T-P light-area potential target value for printer image; in V
VDM-P light-area potential measurement value for printer image; in V
VDT-P dark-area potential target value for printer image; in V
LLMT-P laser output limit check for printer: 0: normal; 1: error
PLMT-P primary charging current limit value setting for printer: 0: normal; 1: error
LLMT laser power limit value setting: 0: normal; 1: error
PLMT primary charging current limit value setting for copier: 0: normal; 1: error
BIAS-P developing bias for printer (result of potential control); in V
BIAS-C developing bias for copier (result of potential control); in V
LPOWER-P laser output value for printer (result of potential control)
LPOWER-C laser output value for copier (result of potential control)
PRIM-P primary charging current value for printer (result of potential control); in uA
PRIM-C primary charging current value for copier (result of potential control); in uA
<SENSOR>
Sub-item Description
DOC-SZ indicates the size of the original identified by the original size sensor.
<MISC>
Sub-item Description
LPOWER indicates the laser intensity (real-time)

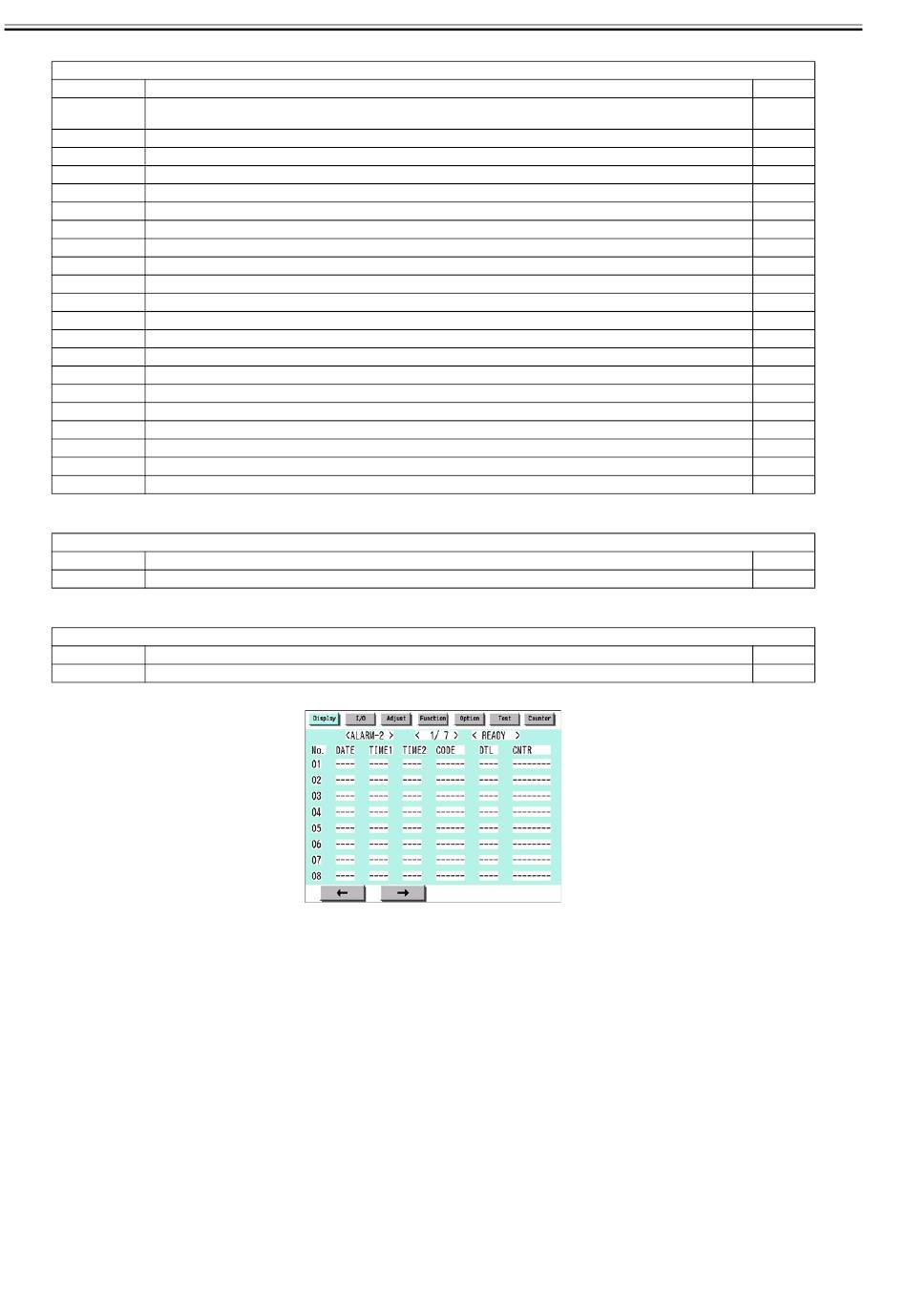

<ALARM-2>
<No.> indicates the order of alarm occurrence; between 1 and 50 (the higher the number, the older the alarm)
<DATE> date of occurrence of the alarm in question
<TIME1> time of occurrence of the alarm in question
<TIME2> time of alarm recovery
<CODE> code of alarm location and alarm code
<DTL> alarm detail code
<CNTR> reading of the total counter at time of alarm occurrence
<ENVRNT>
- Environment Indication
The readings of the environment sensor and the fixing thermistor (main) are indicated as a history of changes in the following: machine inside temperature (deg C),
humidity (%), fixing roller surface (middle; deg C).
17-8
T-17-7
COPIER > DISPLAY > DPOT
T-17-8
COPIER > DISPLAY > SENSOR
T-17-9
COPIER > DISPLAY > MISC
F-17-11
Level
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
Level
2
Level
2
