9. Check Set, enter the IP Address of the router directly attached to
the IP WAN interface of Node10 to set the static route.
NOTE: If you are using the Configuration IP Address Worksheet, enter the
following information:
For Node10, enter the gateway address labeled
2x1 configuration or the 1st circuit of a 1x2 or 2x2.
For the 2nd circuit of a 1x2 or 2x2 configuration, enter the gateway address
labeled .
10. Click Next>.

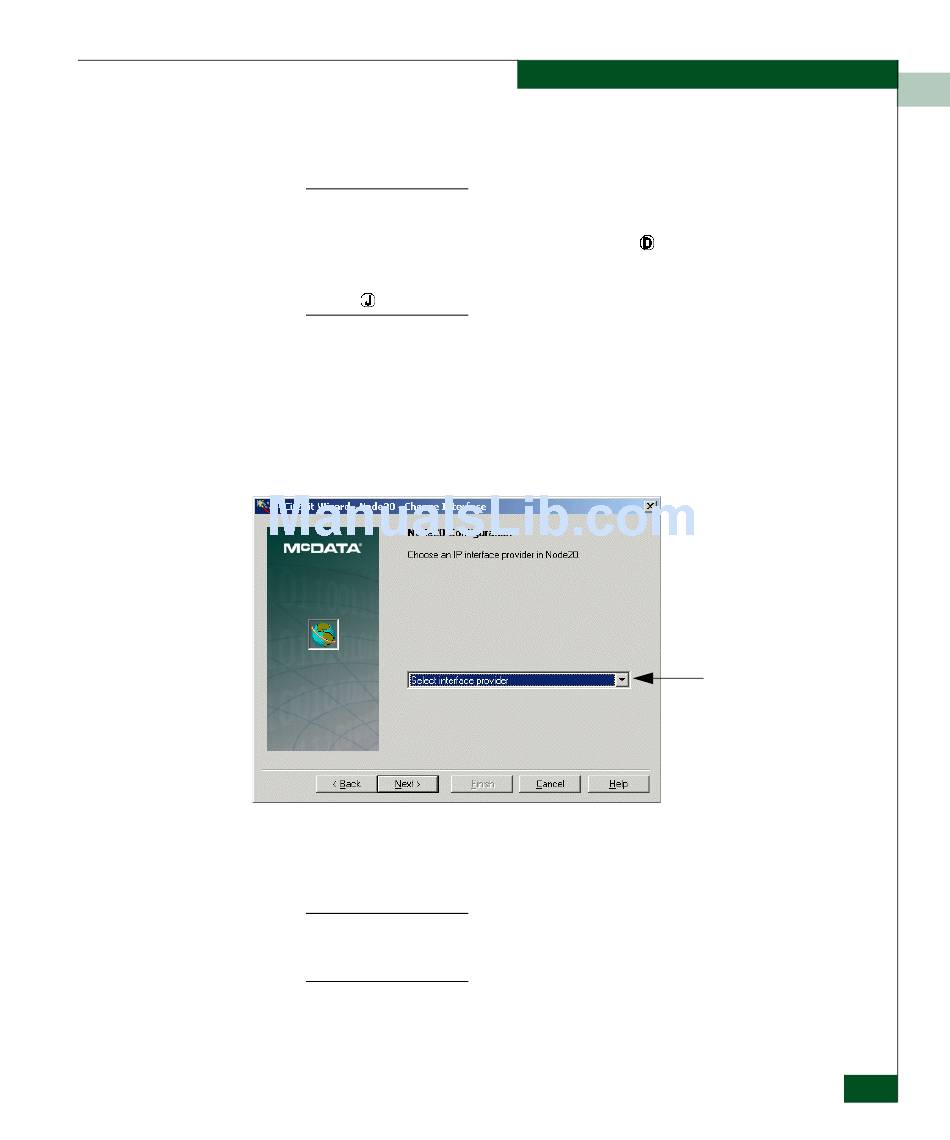

The IP Circuit Wizard Node20 Choose Interface dialog box
appears (Node20 is the destination node).
This drop-down menu displays the available IP interface
providers in the UltraNet Edge 3000 box for Node20.
11. Click on the drop-down arrow and select the appropriate IP
interface provider.
12. Click Next>.
NOTE: Use I/O port 3 for all 1x1 configurations.
When configuring a 2x2, use I/O port 3 to connect the first circuit and I/O
port 4 for the second circuit.
The IP Circuit Wizard Node20 Configure Interface dialog box
appears.
Configuring an E_Port Extension over an Ethernet WAN
Configuring a 1x1 Ethernet Wide Area Network
for the circuit on a 1x1 or
drop-down arrow
