Building the Custom Chassis
4
Configure Node 20
McDATA UltraNet Edge 3000 User Guide
4-6

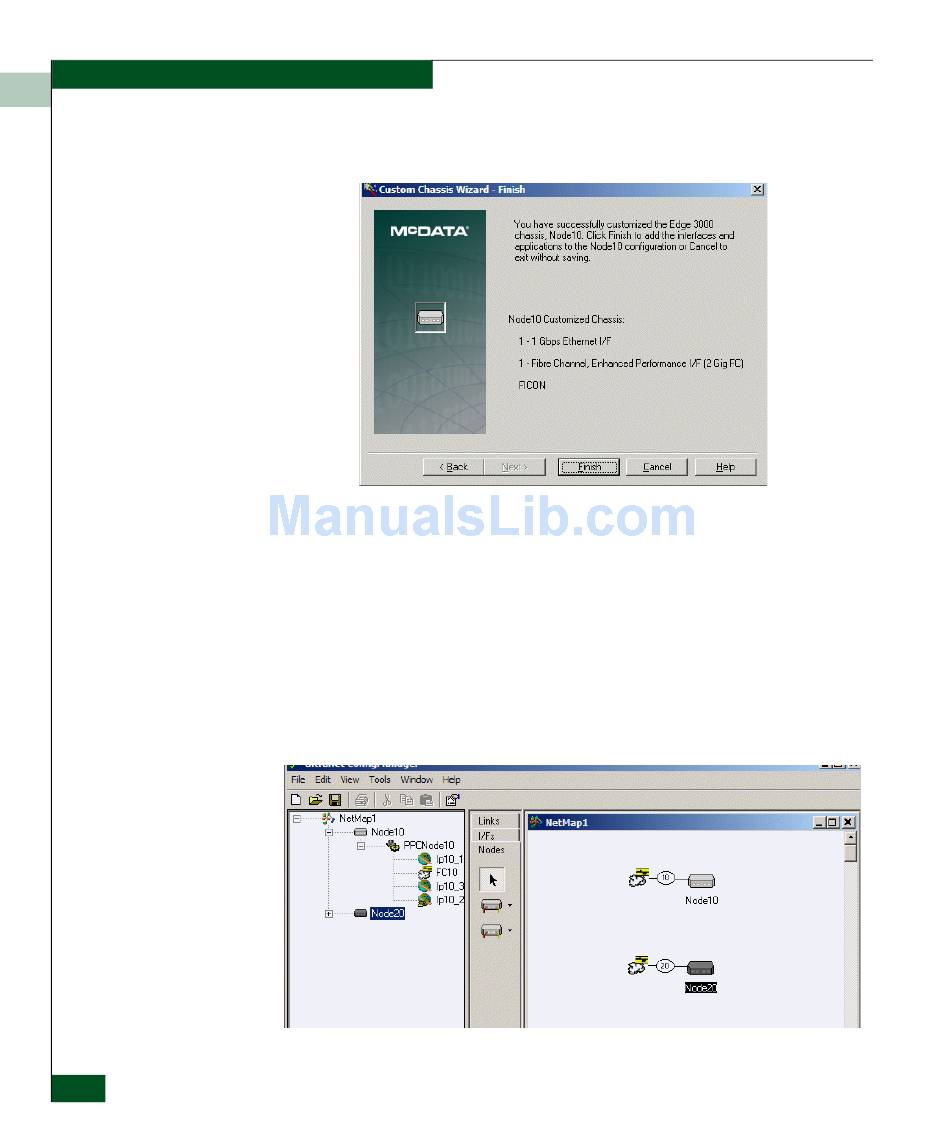

The Custom Chassis Wizard - Finish screen appears and displays
the results for Node10.
14. Click Finish to save Node10 and place it on the Network Map.
15. Continue by configuring Node 20.
To configure node 20, place your cursor over the Network Map Area.
It will turn to crosshairs.
Click to activate the Custom Chassis Wizard again. The Custom
Chassis Wizard - Introduction screen appears for node 20. The steps
are the same as described for node 10.After you click Finish to save
Node20, Both nodes should appear on the Network Map like the
example below.
