18. Click Finish.
Once you have completed the above steps for a basic 1x1 Ethernet
10/100 WAN configuration, your network map should look like
the following example:
19. Continue the configuration process by following the "Creating a
Data Path for Fibre Channel Device Extension Interfaces" section
in this chapter.
After configuring the IP circuit, you need to establish a
connection between the Fibre Channel Device Extension interface
10 on Node10 and the Fibre Channel Device Extension interface
20 on Node20.

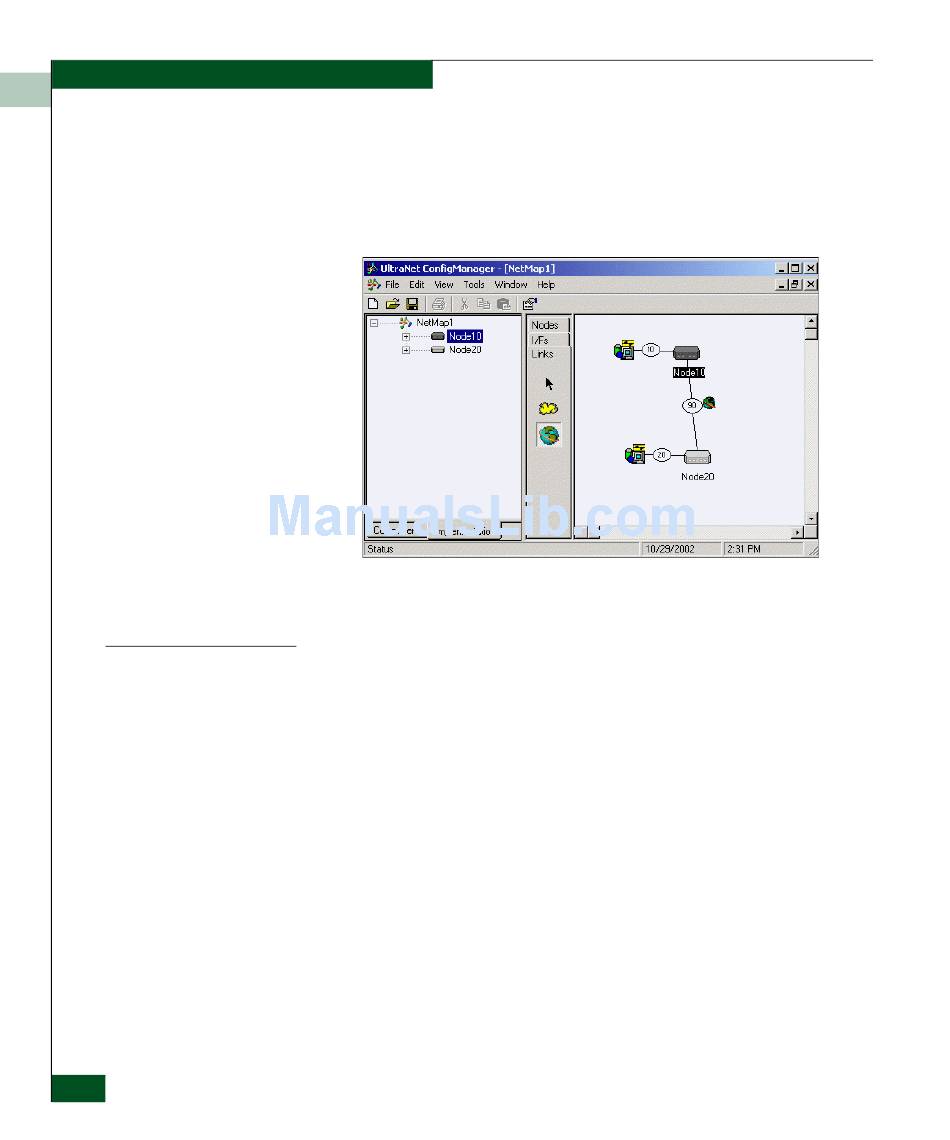

At this point, your screen should look like the following example:
