Gigabit Ethernet
Cabling
Connecting Gig-E
Cabling
Removing Gig-E
Cabling
Gig-E Transceivers
This section provides information about the Gigabit Ethernet (Gig-E)
interface configuration, cabling and optional transceivers.
Use this section to connect the cabling for the Gig-E interface.

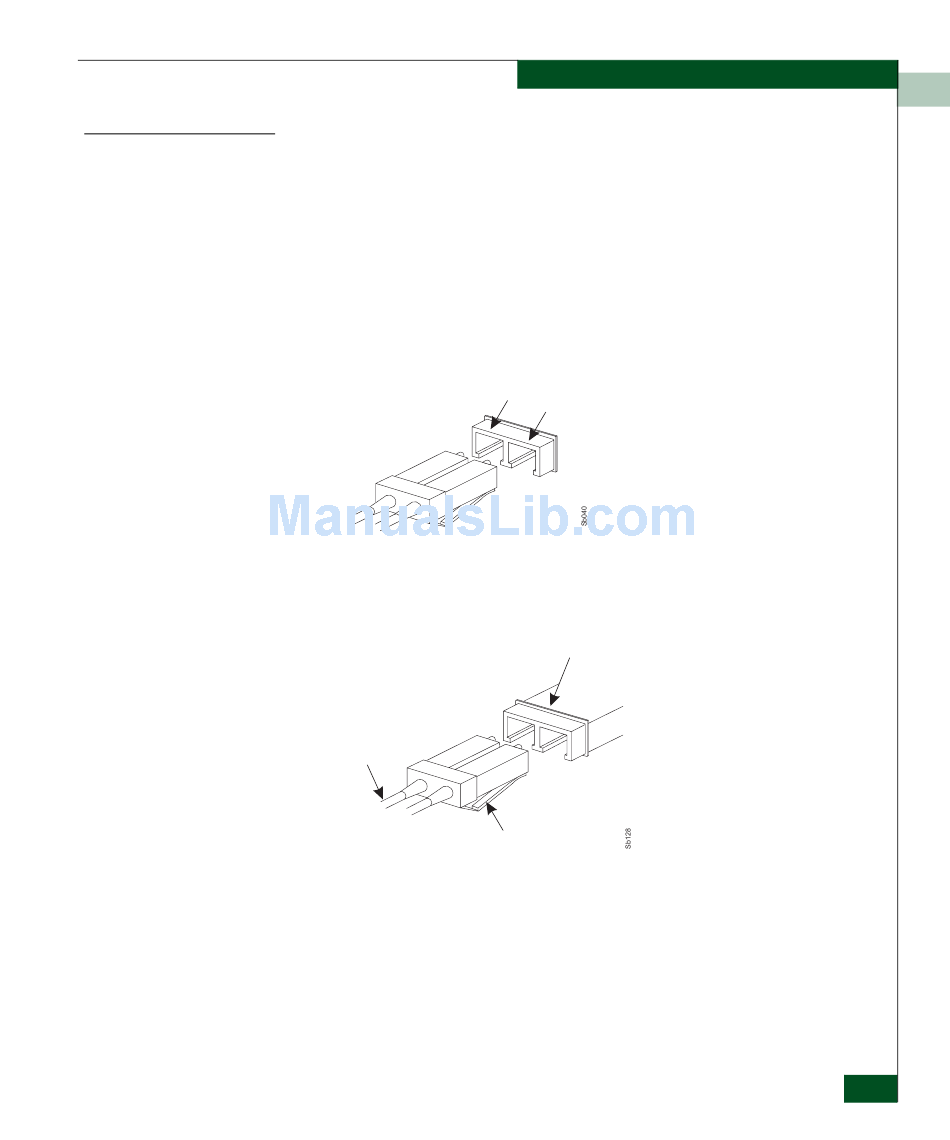

1. Locate the I/O interface configured as Gigabit Ethernet.
2. Locate the cable with the standard LC connector.
3. Align the cable connectors (Receive (Rx) and Transmit (Tx) with
the Gig-E interface Rx and Tx. Gently insert the connector.
Receive
Use this section to remove the cabling from the Gig-E interface.
1. Grasp the LC connector at the end of the fiber optic cable.
Fiber Optic
Cable
LC Connector Clip
2. Depress the LC connector clip located underneath the connector
before pulling to remove the cable from the I/O.
The Gig-E connection uses the standard LC connector. Either short
wave (multi-mode) or long wave (single-mode) transceivers can be
used with the Gig-E interface card. The specifications are located in
Appendix C, Cables, Connectors, and
Network Interface Connections
Transmit
Fiber Optic
Transceiver
Adapters. Instructions for
B-9
