Network Design
3
Default
Gateway 1
192.168.10.3/24 192.168.10.5/24
Maintenance IP
192.168.10.2/24
FC
Fabric
McDATA UltraNet Edge 3000 User Guide
3-2
Personal
Computer 1
192.168.10.1/24
IP
FC
UltraNet
Fibre
Edge 10
Channel
Switch 1
192.168.100.1/24
192.168.100.4/24

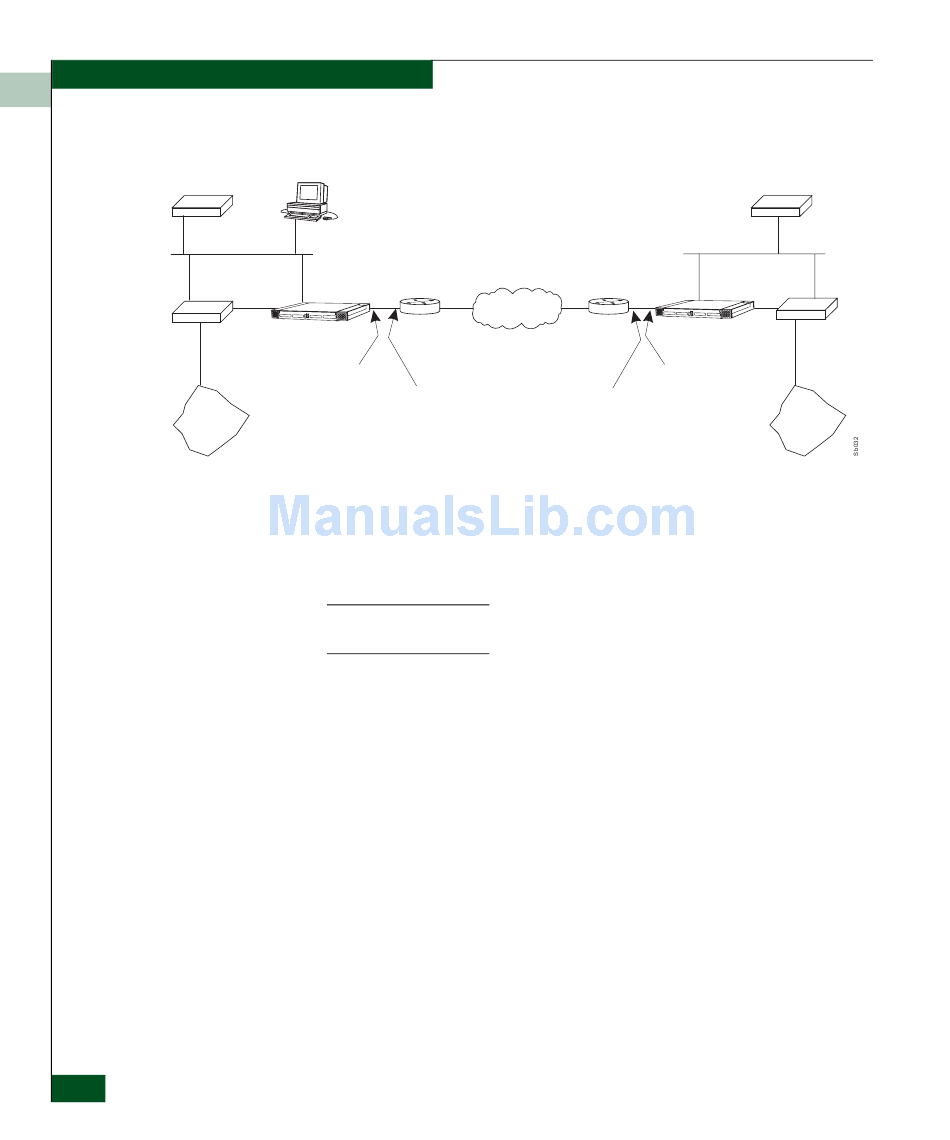

Figure 3-1 Example Ethernet WAN with two UltraNet Edge 3000s
When designing your network for an Ethernet WAN using the
UltraNet Edge 3000, gather the following information for both the
local and remote nodes:
NOTE: Refer to the UltraNet Edge Storage Router Configuration IP Address
Worksheet in Appendix J for help gathering the IP addresses.
• Host IP addresses (Ethernet maintenance interface and Ethernet
WAN interface)
• Subnet information
• Default Gateway IP host address on the Ethernet maintenance
interface and Ethernet WAN interface
• Static route information:
— IP host address of the natively attached routers or switches
• SNMP information
— System name and contact information
— Community names
— Trap Destinations
IP Cloud
Router
1
192.168.200.4/24
Default
Gateway 2
192.168.20.3/24
Maintenance IP
192.168.20.1/24 192.168.20.2/24
IP
FC
Router
UltraNet
2
Edge 20
192.168.200.1/24
Fibre
Channel
FC
Switch 2
Fabric
