Replacing the Gigabit Ethernet Short Wave Transceiver
12
Removing the Gig-E
Short Wave SFP
Transceiver
Removing the Black
Removing the Black
Removing the Plain
McDATA UltraNet Edge 3000 User Guide
12-18

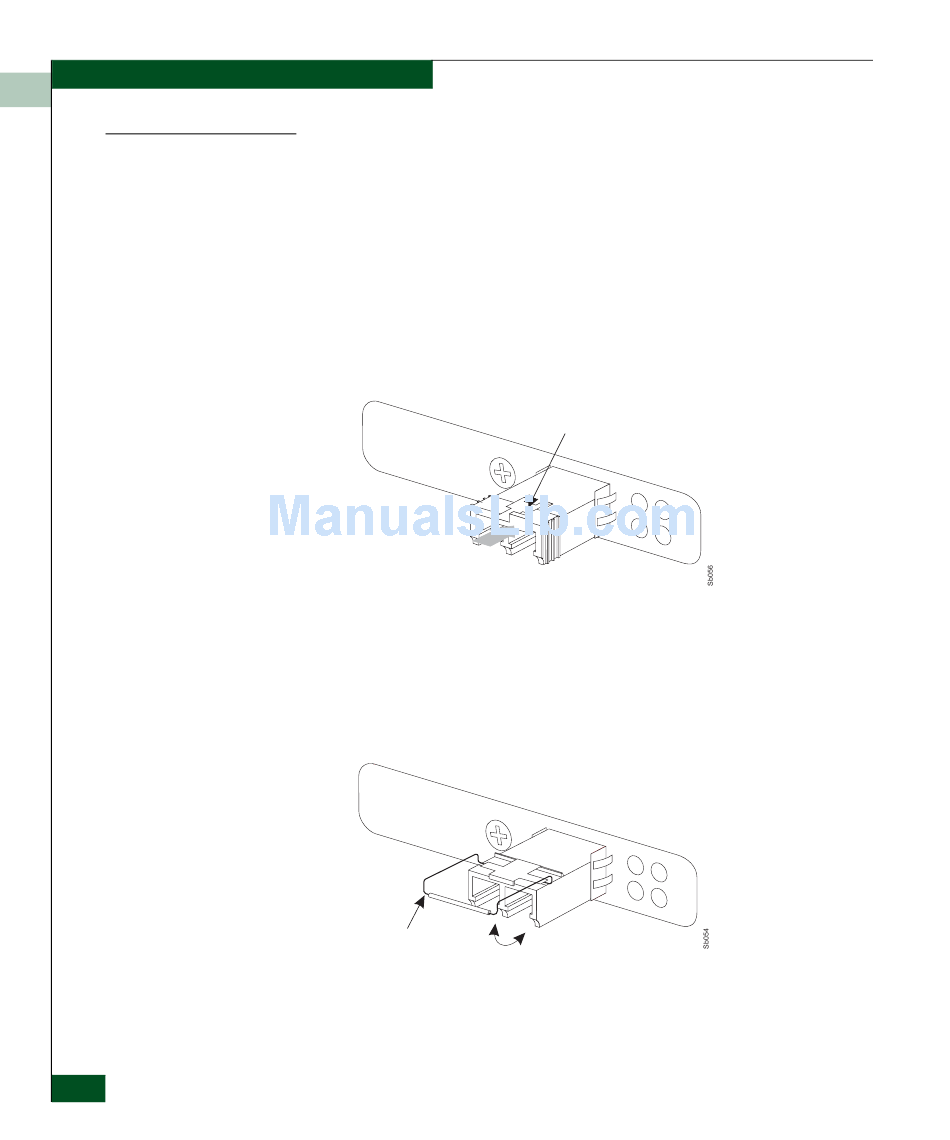

Use the removal procedure below that corresponds with the type of
transceiver you are removing.
1. Remove the fiber optic cabling from the transceiver.
Metal Clasp
2. Gently push the red release tab towards the interface card to
Transceiver
release the transceiver. To avoid breaking the release tab, be
careful to push it straight in.
3. Pull the transceiver out of the interface card.
1. Remove the fiber optic cabling from the transceiver.
Metal Clasp
2. Pull the black metal clasp up and gently pull the transceiver to
Transceiver
release it from the interface card.
3. Pull the transceiver out of the interface card.
Metal Clasp
1. Remove the fiber optic cabling from the transceiver.
Metal Clasp
2. Pull the metal clasp up and gently pull the transceiver to release it
Transceiver
from the interface card.
Release Tab
