Replacing the Fibre Channel Short Wave Transceiver
12
Removing the Black
Plastic Tab Transceiver
Installing the Fibre
Channel Short Wave
SFP Transceiver
McDATA UltraNet Edge 3000 User Guide
12-30

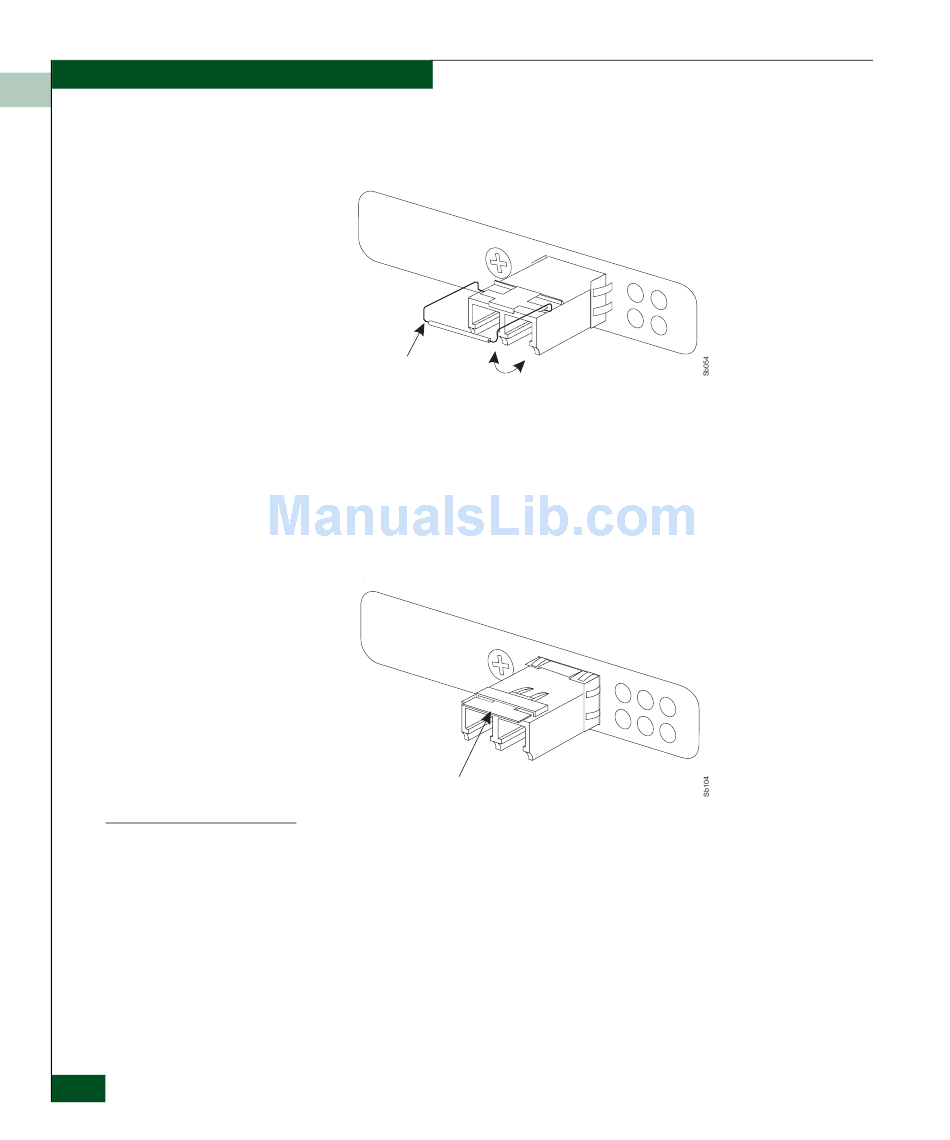

3. Pull the transceiver out of the interface card.
Metal Clasp
1. Remove the fiber optic cabling from the transceiver.
2. Gently push the black release tab towards the interface card to
release the transceiver. To avoid breaking the release tab, be
careful to push it straight in.
3. Pull the transceiver out of the interface card.
Release Tab
Use the installation procedure below to install both types of short
wave transceivers into the interface card.
1. Carefully position the short wave transceiver to insert it into the
interface card.
2. Slide the transceiver into the interface card until it clicks into
place.
