Configuring a 2x2 Ethernet Wide Area Network
6
McDATA UltraNet Edge 3000 User Guide
6-8

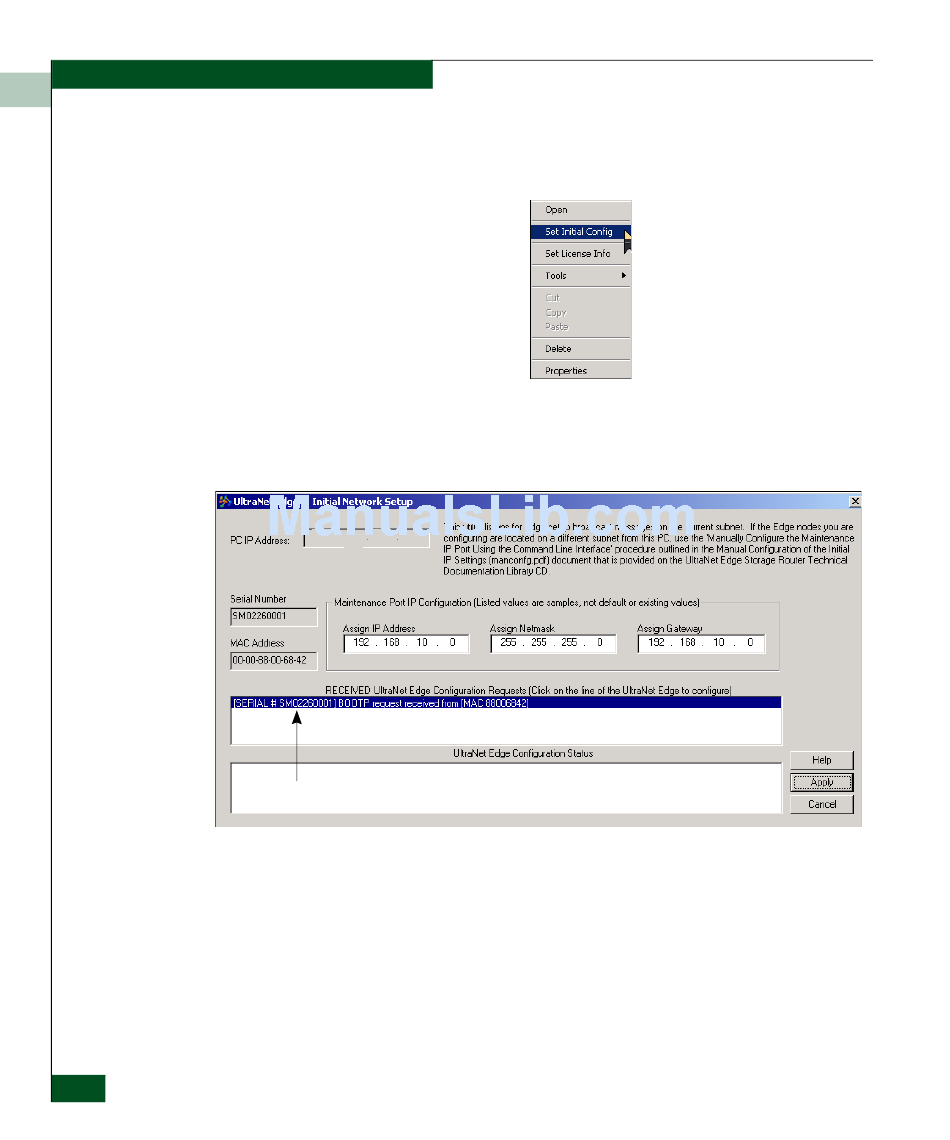

1. Right click on Node10 and select Set Initial Config from the
menu that appears.
The Initial Network Setup dialog box appears.
The detected UltraNet Edge 3000 will appear in the section
labeled RECEIVED UltraNet Configuration Requests.
Broadcast Data
The "broadcast data" only appears the first time you configure,
when the Alphanumeric messages window displays BOTP on
the front of the UltraNet Edge 3000 (see Figure 2-4 in Chapter 2).
2. Click on the line of text (the Broadcast Data) that appears in that
section to cause the serial number and MAC Address fields to
appear.
3. Modify the Assign IP Address, the Assign Netmask address, and
the Assign Gateway address in the middle of the dialog box to
the maintenance interface and default gateway addresses.
