Installing the Gig-E
Short Wave SFP
Transceiver

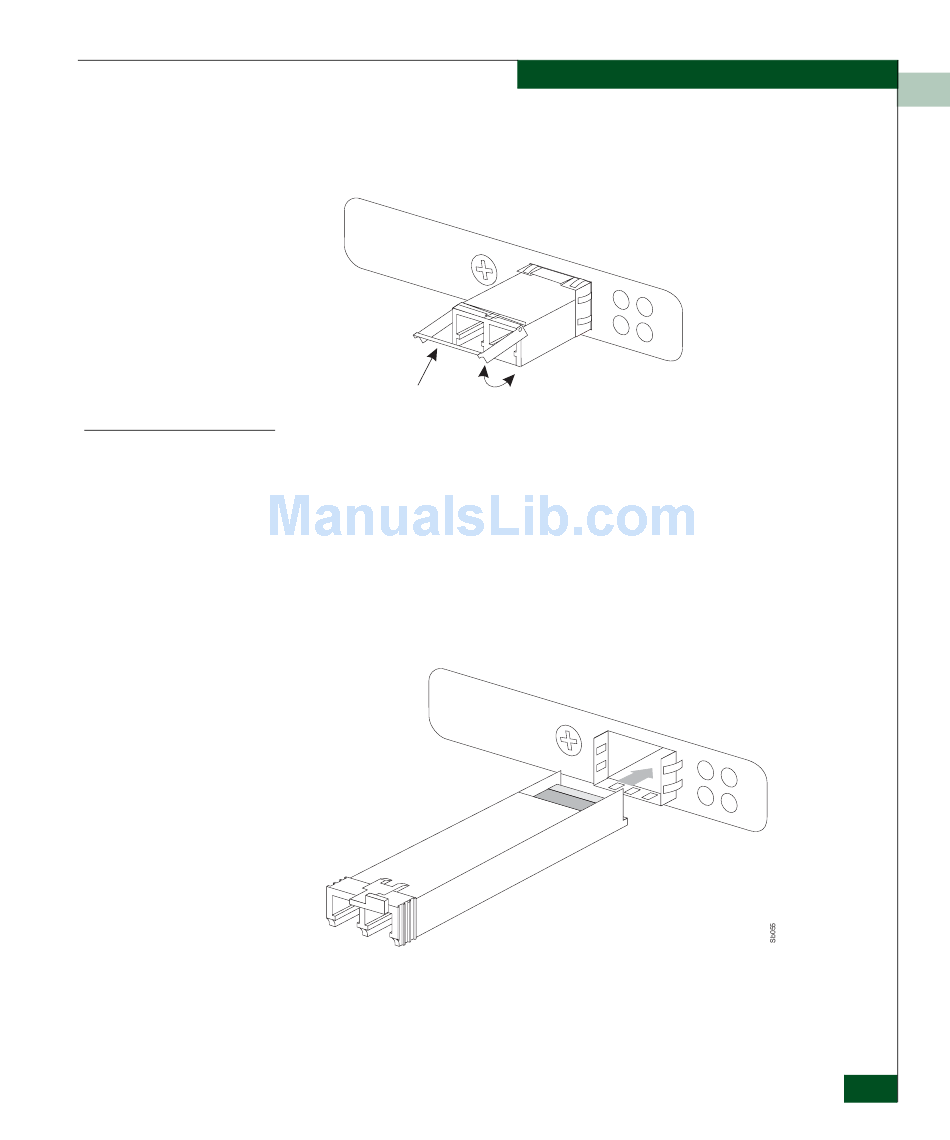

Installing the Red
Plastic Tab Transceiver
3. Pull the transceiver out of the interface card.
Metal Clasp
Use the installation procedure below to install all variations of the
Gig-E short wave transceivers.
1. Carefully position the long wave transceiver to insert it into the
interface card.
2. Slide the transceiver into the interface card until it clicks into
place.
Replacing the Gigabit Ethernet Short Wave Transceiver
Hardware Maintenance
