Network Interface Connections
Removing Fibre
Channel Cabling
Fibre Channel
Transceivers
Ethernet 10/100
Cabling
UltraNet™ Edge Storage Router 3000 User Guide
B-8

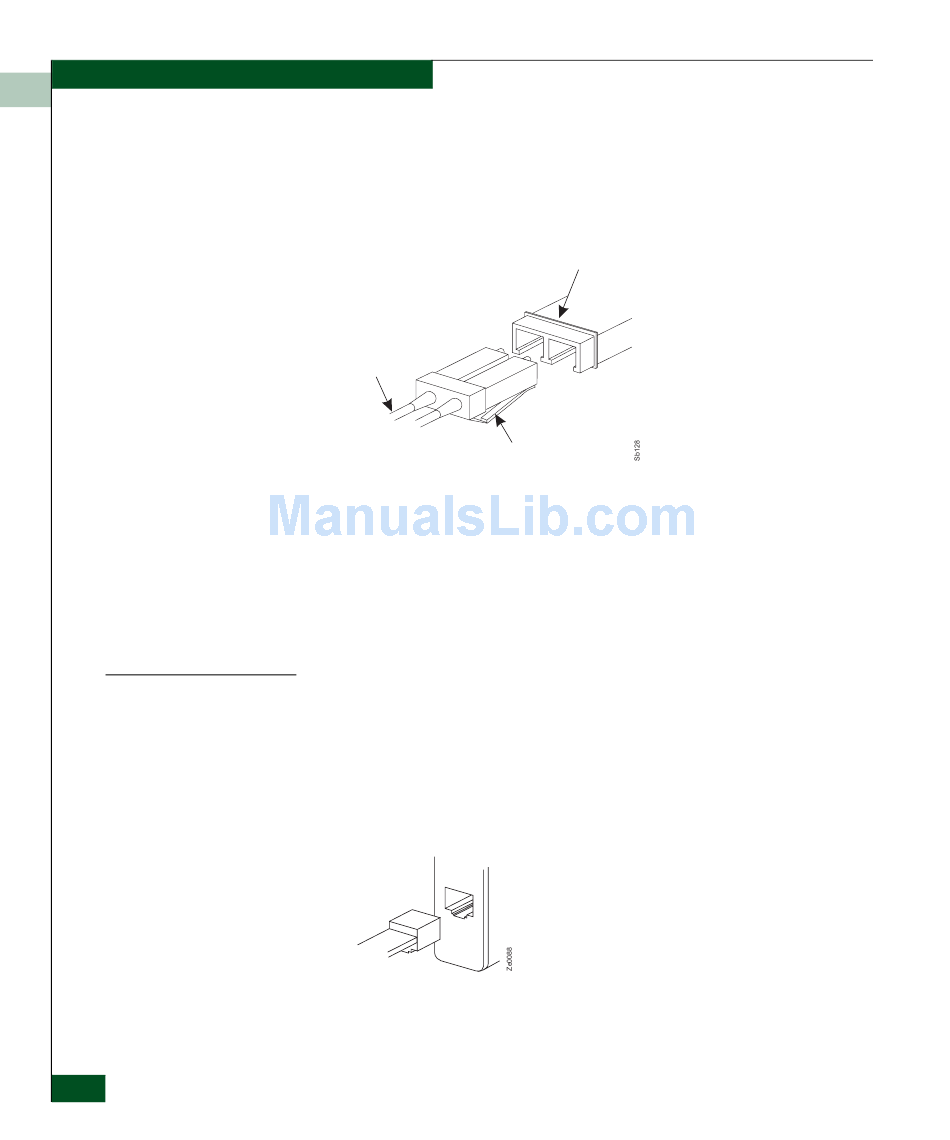

The following illustration shows a fiber optic cable with a LC
connector and a fiber optic transceiver.
1. Grasp the LC connector at the end of the fiber optic cable.
Fiber Optic
Cable
LC Connector Clip
2. Depress the LC connector clip located underneath the LC
connector before pulling to remove the cable from the I/O.
The Fibre Channel connection uses the standard LC connector. The
interface card uses either short wave (multi-mode) or long wave
(single-mode) transceivers. (see
Adapters for the specifications). Instructions for removing and
installing the transceivers are found in
Maintenance.
This section provides cabling procedures for the 10/100 Ethernet
interface. The interface comes standard with a short wave
(multi-mode) transceiver. A long wave (single-mode) is not available
for this interface type.
1. Locate the I/O interface configured as 10/100 Ethernet.
2. Locate the Ethernet cable with the RJ-45 connector.
3. Align the RJ-45 cable connector with the RJ-45 jack on the
Ethernet card. Gently insert the connector.
Fiber Optic
Transceiver
Appendix C, Cables, Connectors, and
Chapter 12, Hardware
