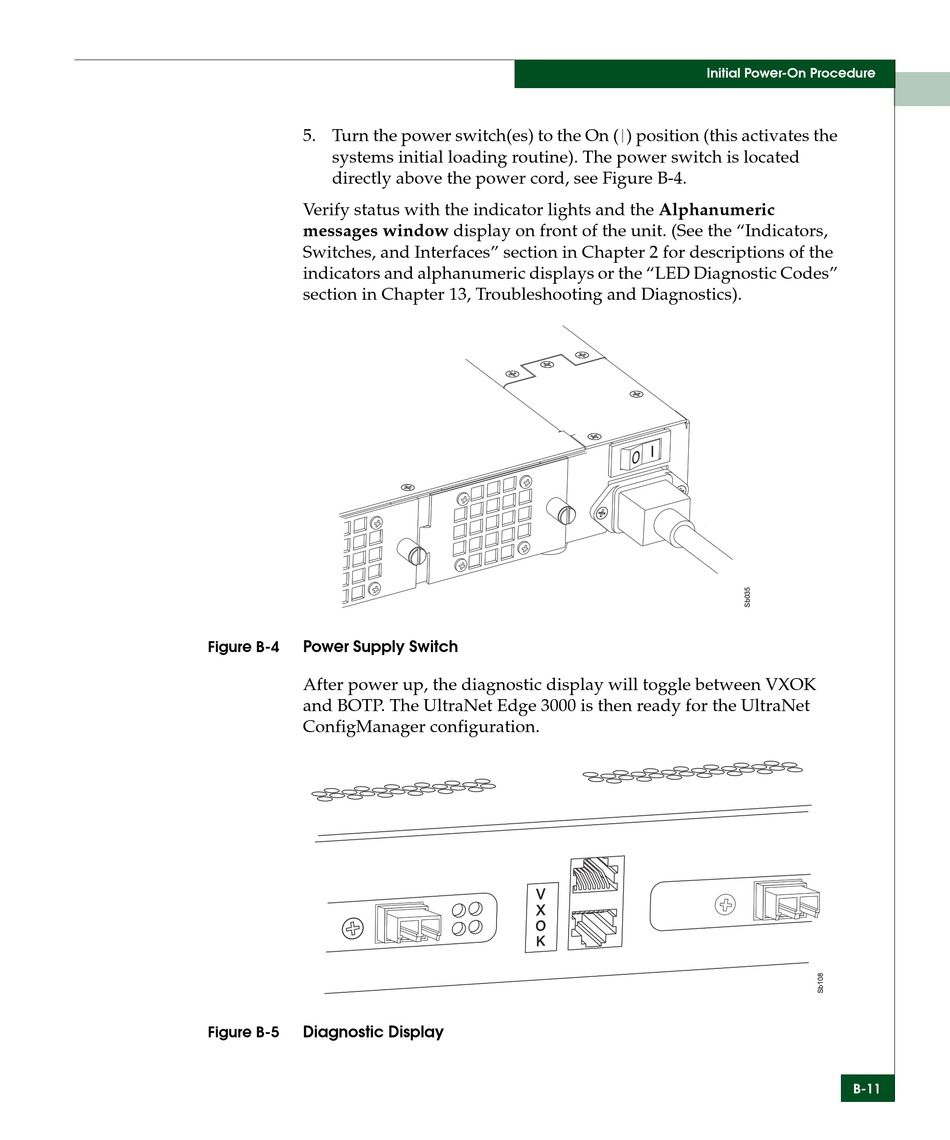

5. Turn the power switch(es) to the On (
systems initial loading routine). The power switch is located
directly above the power cord, see Figure B-4.
Verify status with the indicator lights and the Alphanumeric
messages window display on front of the unit. (See the "Indicators,
Switches, and Interfaces" section in Chapter 2 for descriptions of the
indicators and alphanumeric displays or the "LED Diagnostic Codes"
section in Chapter 13, Troubleshooting and Diagnostics).
Power Supply Switch
Figure B-4
After power up, the diagnostic display will toggle between VXOK
and BOTP. The UltraNet Edge 3000 is then ready for the UltraNet
ConfigManager configuration.
Diagnostic Display
Figure B-5
Initial Power-On Procedure
⏐ ) position (this activates the
I
B-11
