Setup Connection

Figure B-1
UltraNet™ Edge Storage Router 3000 User Guide
B-4
NOTE: Do not stack the units. The top air holes and side vents must remain
unconstricted.
This section describes the procedures for making your initial setup
connection (Ethernet RJ-45), power connection, network interface
connections, and maintenance/diagnostics connections.
This connection allows you to configure your UltraNet Edge 3000
using the UltraNet ConfigManager application.
1. Connect an Ethernet straight through Category 5 cable to the
RJ-45 connector labeled Ethernet on the UltraNet Edge 3000 unit.
2. Connect the other end of the cable to the Ethernet network
connection. The UltraNet Edge 3000 unit must be on the same
subnet as the PC which has UltraNet ConfigManager installed on
it (consult with your systems administrator for the location).
Power Supply
Fan (4)

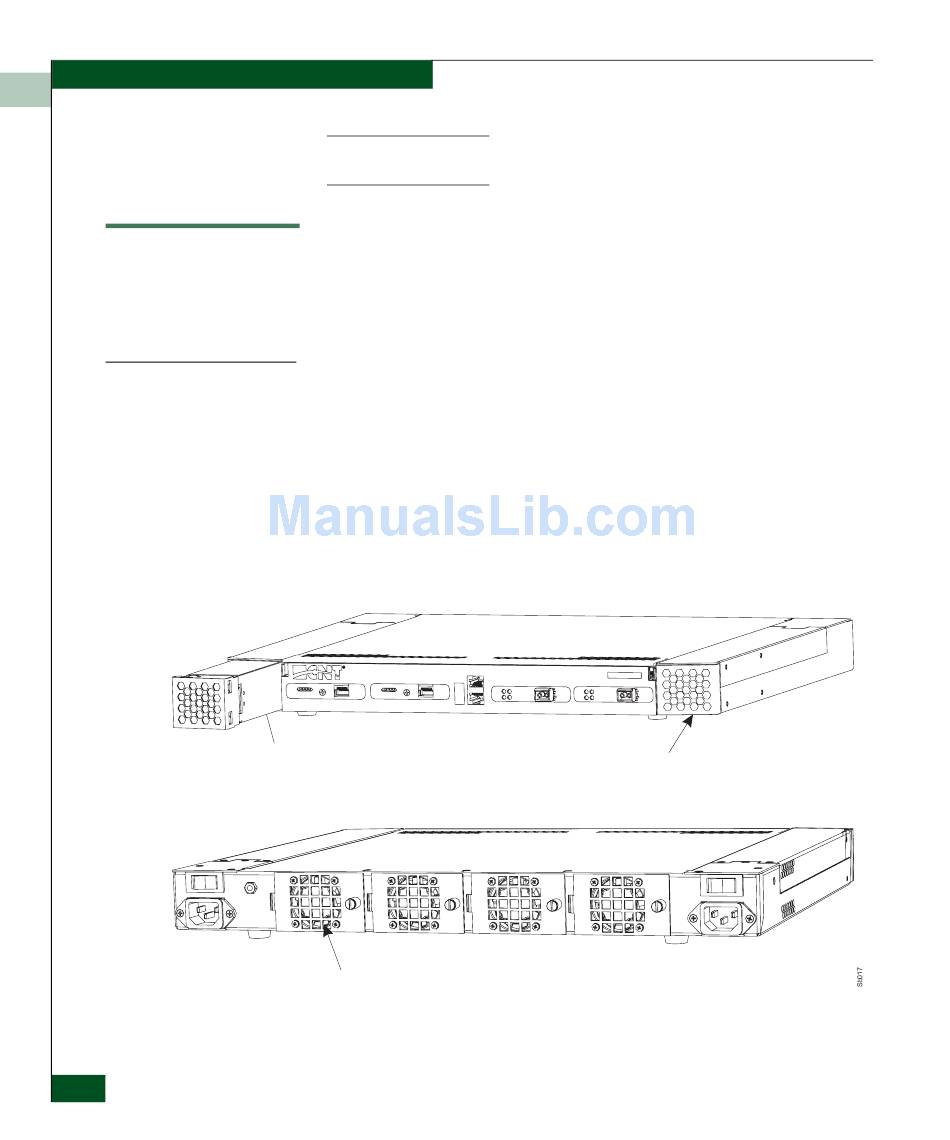

Connecting the CAT5 Cable to the UltraNet Edge 3000

Redundant Power Supply
Front View
Back View
