McDATA ULTRANETTM EDGE STORAGE ROUTER 3000 User Manual page 151

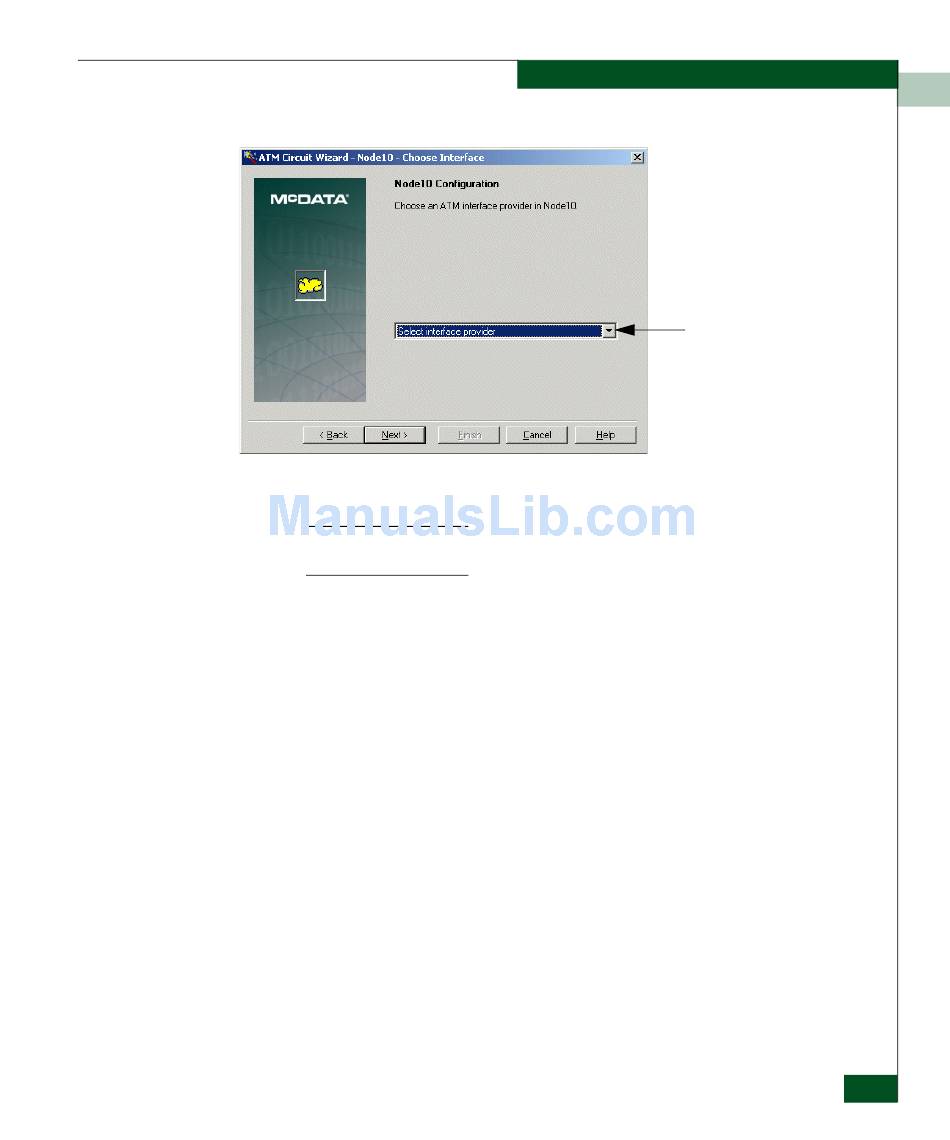

6. Click the drop-down arrow and select the appropriate ATM
interface provider for Node 10.
NOTE: Select ATM in I/O port 3 for the first circuit. If you are configuring a
2x2, select ATM in I/O port 4 for the second circuit.
7. Click Next>.
The ATM Circuit Wizard - Node10 - Configure PVC dialog box
appears.
This dialog box enables you to configure PVC parameters for
Node10.
Configuring an E_Port Extension over an ATM WAN
Configuring a 1x1 ATM Wide Area Network
drop-down arrow
7
7-13
