8. Follow the OC-3 ATM Interface Card Installation Procedure to
install the new OC-3 ATM interface card.

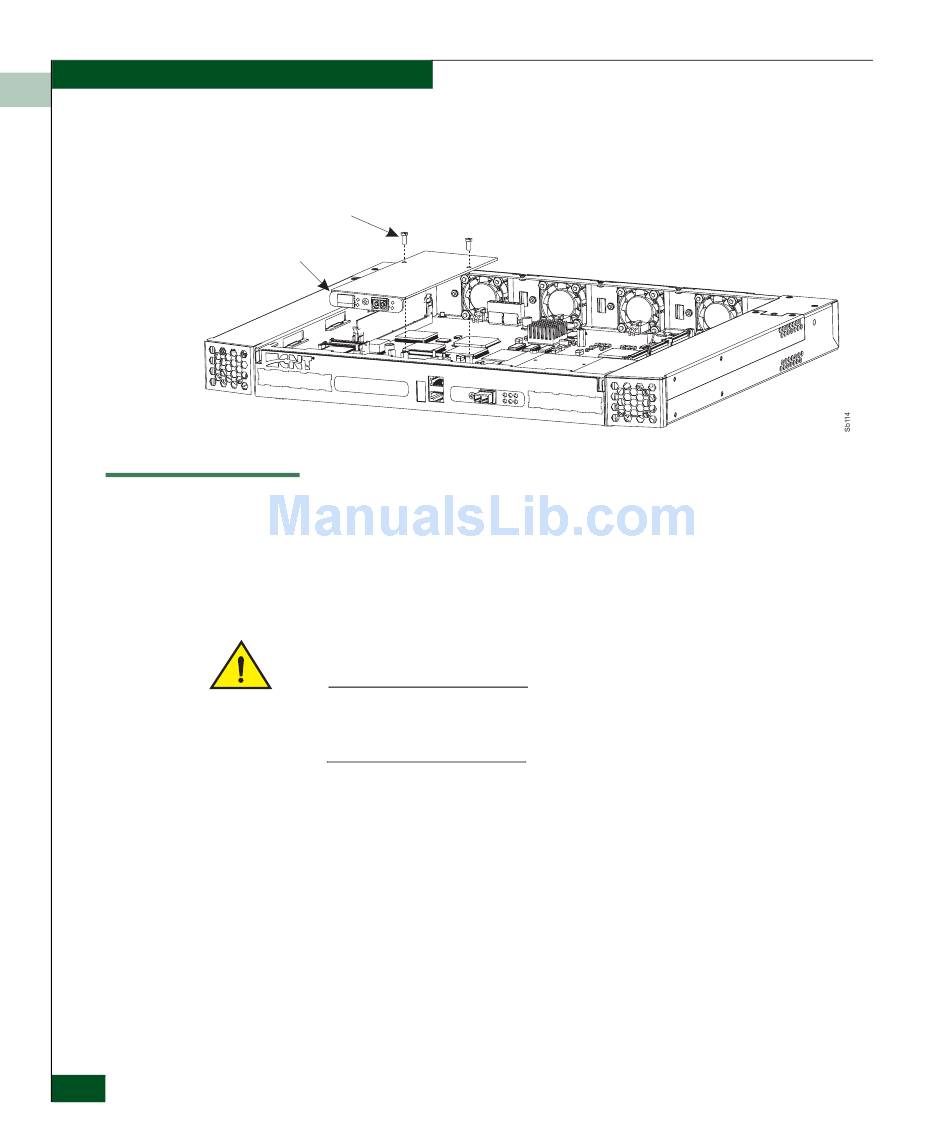

Screw (2)
OC-3 Interface
Card
I/O 4
I/O 3
Use the following procedure to install the OC-3 ATM interface card
into the UltraNet Edge 3000 chassis.
Tools required: A small Phillips screwdriver and an adjustable
Torque driver, rated between 3 and 15 in-lbs.
CAUTION
Make sure the power is off. Attach a wrist strap and follow ESD
procedures (see page B-19) during the handling of all electronic
components.
1. Carefully insert the OC-3 ATM interface card in I/O 3.
The OC-3 ATM interface card will plug into I/O 3, location J8 and
J9 on the motherboard.
2. Secure the OC-3 ATM interface card using the two screws that
were made available during the removal procedure. Torque to 6
in-lbs.
3. Reconnect the power cords (rear).
4. Turn on the power supplies.
5. Replace the cover by following the Top Cover Installation
Procedure..
I/O 2
I/O 1
