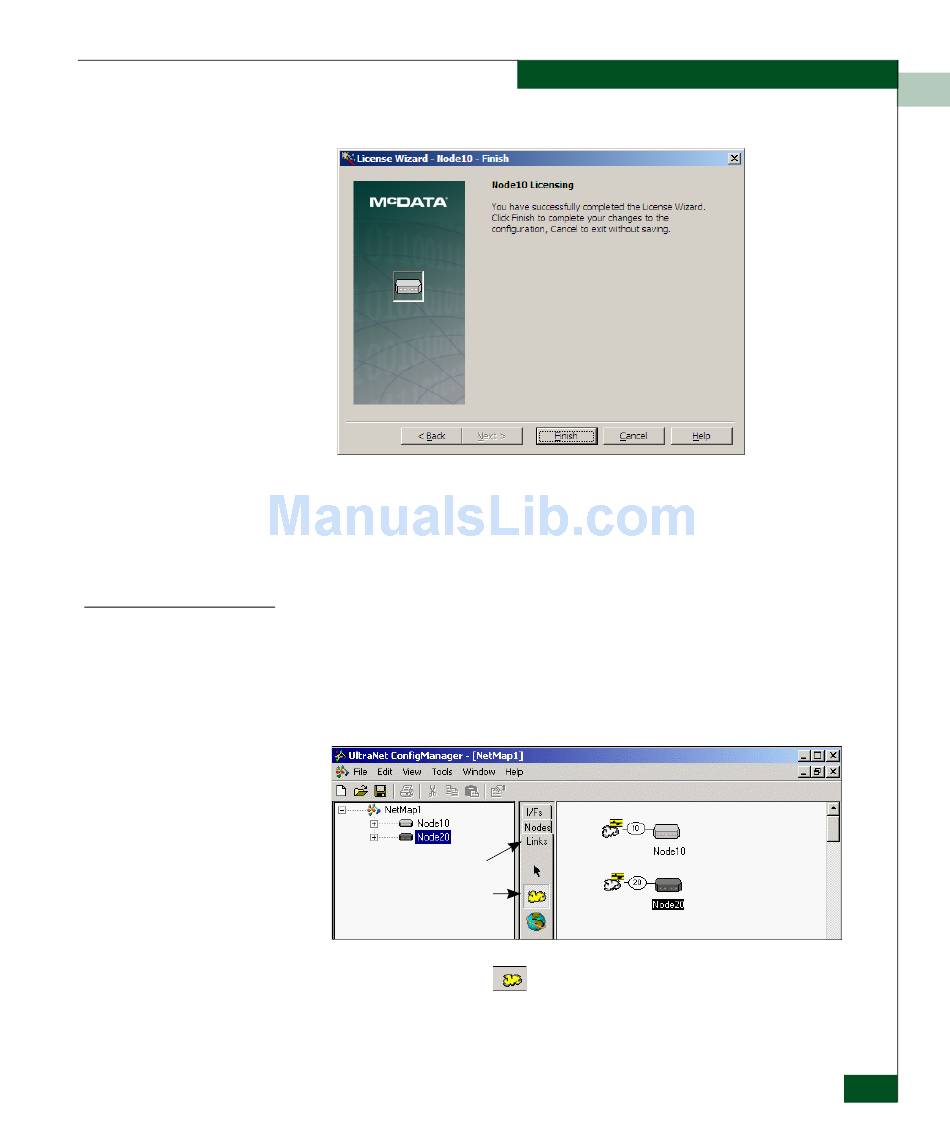

5. Click the Finish button to complete the configuration.
6. Right-click on Node 20 and then repeat step through step to set
the licensing information for this node.
7. Continue the configuration process by proceeding to the "Adding
an ATM Circuit" procedure.
You will now create an ATM circuit. A circuit is the ATM WAN link
between two nodes. Use the ATM Circuit Wizard to create and
configure the ATM circuit by following these steps:
1. Select the Links tab on the center toolbar.
Links tab
ATM icon (cloud)
2. Click the ATM icon
Configuring an E_Port Extension over an ATM WAN
Configuring a 1x1 ATM Wide Area Network
on the center toolbar.
