Gigabit Ethernet Interface Card Installation Procedure

12
Gigabit Ethernet Interface Card Installation Procedure
McDATA UltraNet Edge 3000 User Guide
12-14
8. Follow the Gigabit Ethernet Interface Card Installation Procedure
to install the new Gig-E interface card.

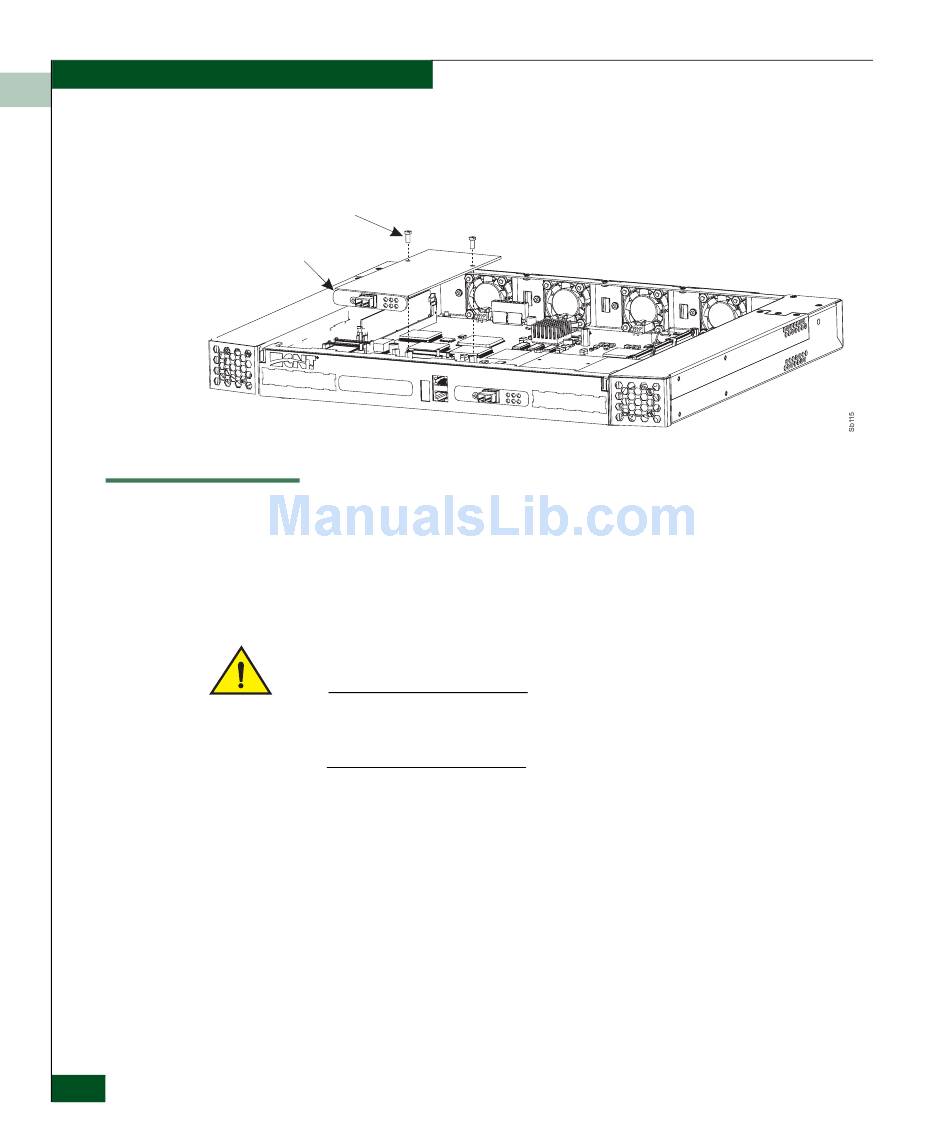

Screw (2)
Gigabit Ethernet
Interface Card
I/O 4
I/O 3
Use the following procedure to install the Gigabit Ethernet (Gig-E)
interface card into the UltraNet Edge 3000 chassis.
Tools required: A small Phillips screwdriver and an adjustable
Torque driver, rated between 3 and 15 in-lbs.
CAUTION
Make sure the power is off. Attach a wrist strap and follow ESD
procedures (see page B-19) during the handling of all electronic
components.
1. Carefully insert the Gig-E interface card in either I/O 3 or I/O 4.
For I/O 3, the Gig-E interface card will plug into location J8 and
J9 on the motherboard. If the Gig-E interface card is being
installed into I/O 4, plug it into location J10 and J11 on the
motherboard.
2. Secure the Gig-E interface card using the two screws that were
made available during the removal procedure. Torque to 6 in-lbs.
3. Reconnect the power cords (rear).
4. Turn on the power supplies.
I/O 2
I/O 1
