McDATA ULTRANETTM EDGE STORAGE ROUTER 3000 User Manual page 129

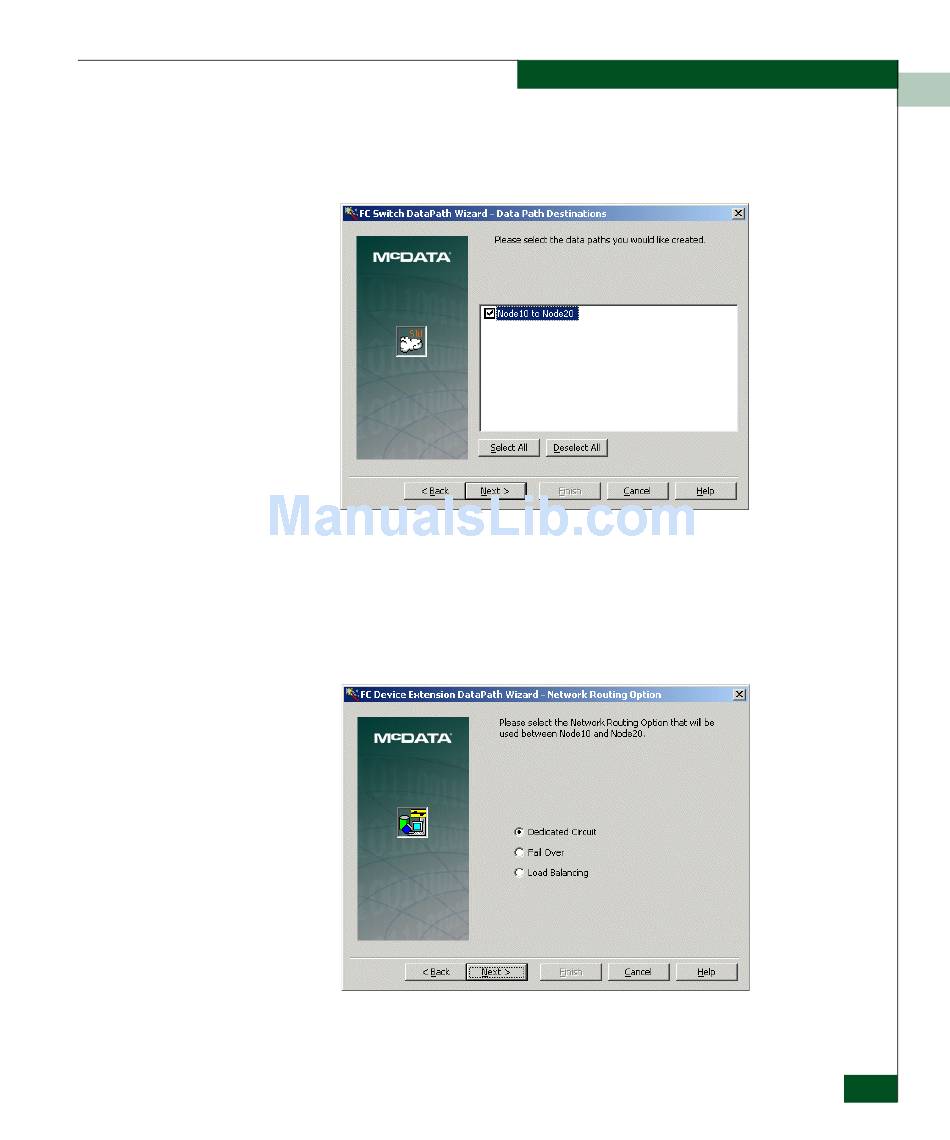

The FC Switch DataPath Wizard - Data Path Destinations dialog
appears.
5. Select the destination for which you want to create data path by
checking the box next to the destination.
6. Click the Next button.
The FC Switch DataPath Wizard - Network Routing Option
dialog appears.
7. Select the network routing option for the data path.
8. Click the Next button to accept the selected routing type.
Configuring an F_Port Extension over an Ethernet WAN
Configuring a 2x2 Ethernet Wide Area Network
6
6-23
