Broadcast Data
The "broadcast data" only appears the first time you configure,
when the Alphanumeric messages window displays BOTP on
the front of the UltraNet Edge Storage Router (see Figure 2-4 in
Chapter 2 for a diagram of the Alphanumeric messages window).
The Set Initial config function is unavailable once the Network
Maintenance Port IP address has been set. This option can be set
only once. However, if you need to change the Maintenance Port
IP address after you set the initial configuration, see Maintenance
Port IP Configuration.

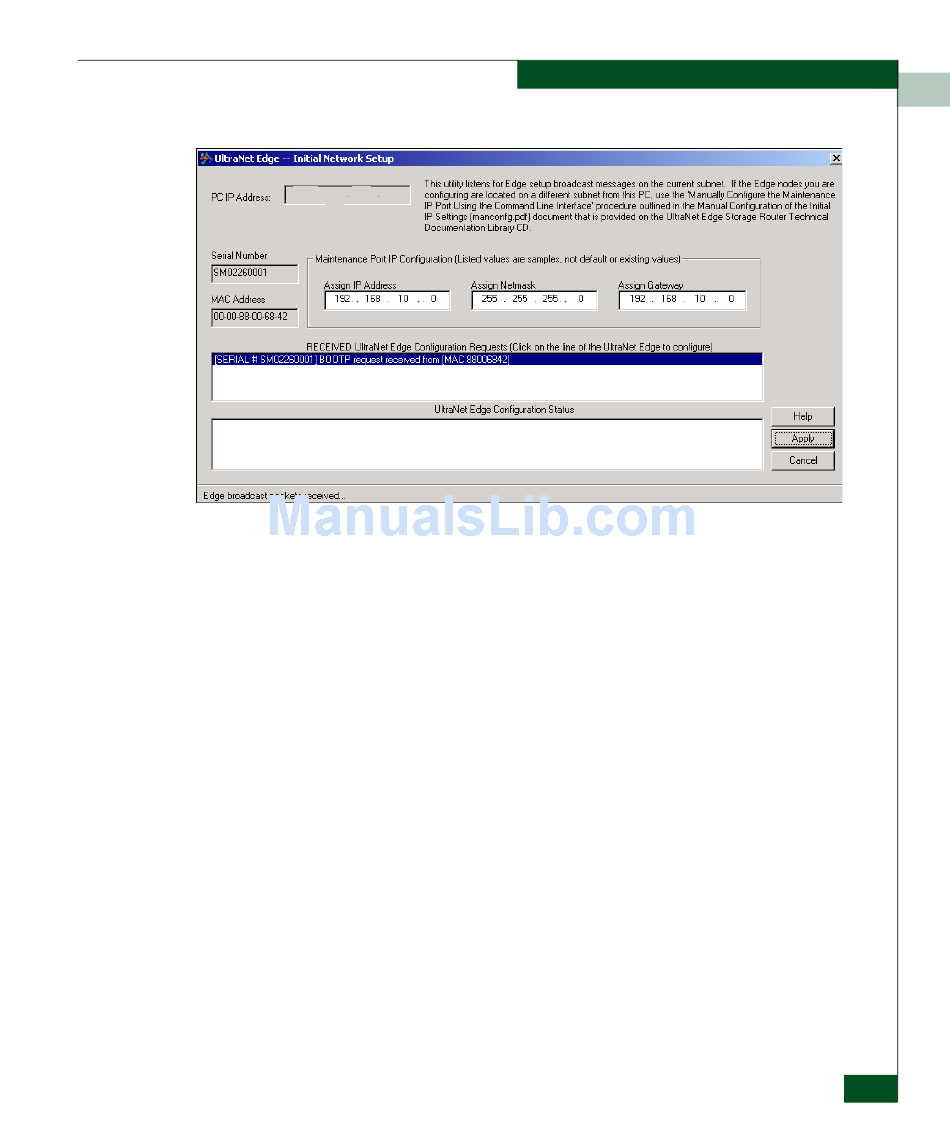

2. Click on the line of text (the Broadcast Data) that appears in the
section labeled RECEIVED UltraNet Edge Configuration
Requests to insert the Serial Number and MAC Address fields of
this UltraNet Edge Storage Router.
3. Modify the Assign IP Address, the Assign Netmask address, and
the Assign Gateway address fields in the middle of the dialog
box to the maintenance interface and default gateway addresses.
