McDATA ULTRANETTM EDGE STORAGE ROUTER 3000 User Manual page 161

to the same value as the maximum transmission rate, the
maximum transmission rate acts as a static rate limit for the
circuit.
18. Select the Enable Compression option to allow compression on
the circuit.
The Maximum Transmission Rate and compression features are
limited by the license key for the node. The MTR value cannot
exceed what is specified by the license key.
19. Click Next to accept the defaults.

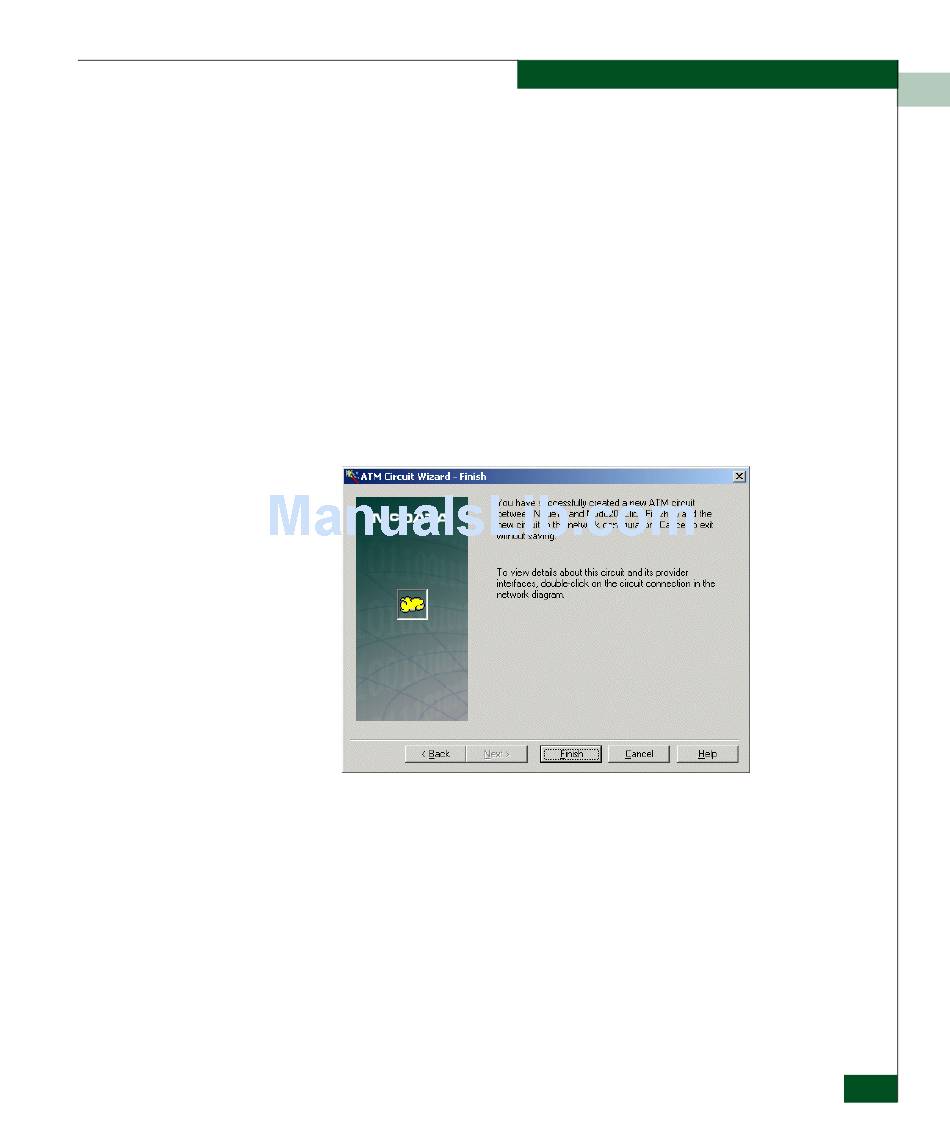

The ATM Circuit Wizard - Finish dialog box appears.
This screen indicates that you have successfully created a new
ATM circuit between the nodes.
20. Click Finish to add the new circuit to the network configuration.
Click Cancel to exit without saving.
The network map should now look like this:
Configuring an E_Port Extension over an ATM WAN
Configuring a 1x1 ATM Wide Area Network
