Configuring a 2x2 Ethernet Wide Area Network
6
McDATA UltraNet Edge 3000 User Guide
6-22
mentioned previously (Node10 and Node20), the Fibre Channel
Switch interface on Node10 would be numbered 10 and the Fibre
Channel Switch interface on Node20 would be numbered 20.
Use the following procedure to create a data path between the Fibre
Channel Switch interfaces:

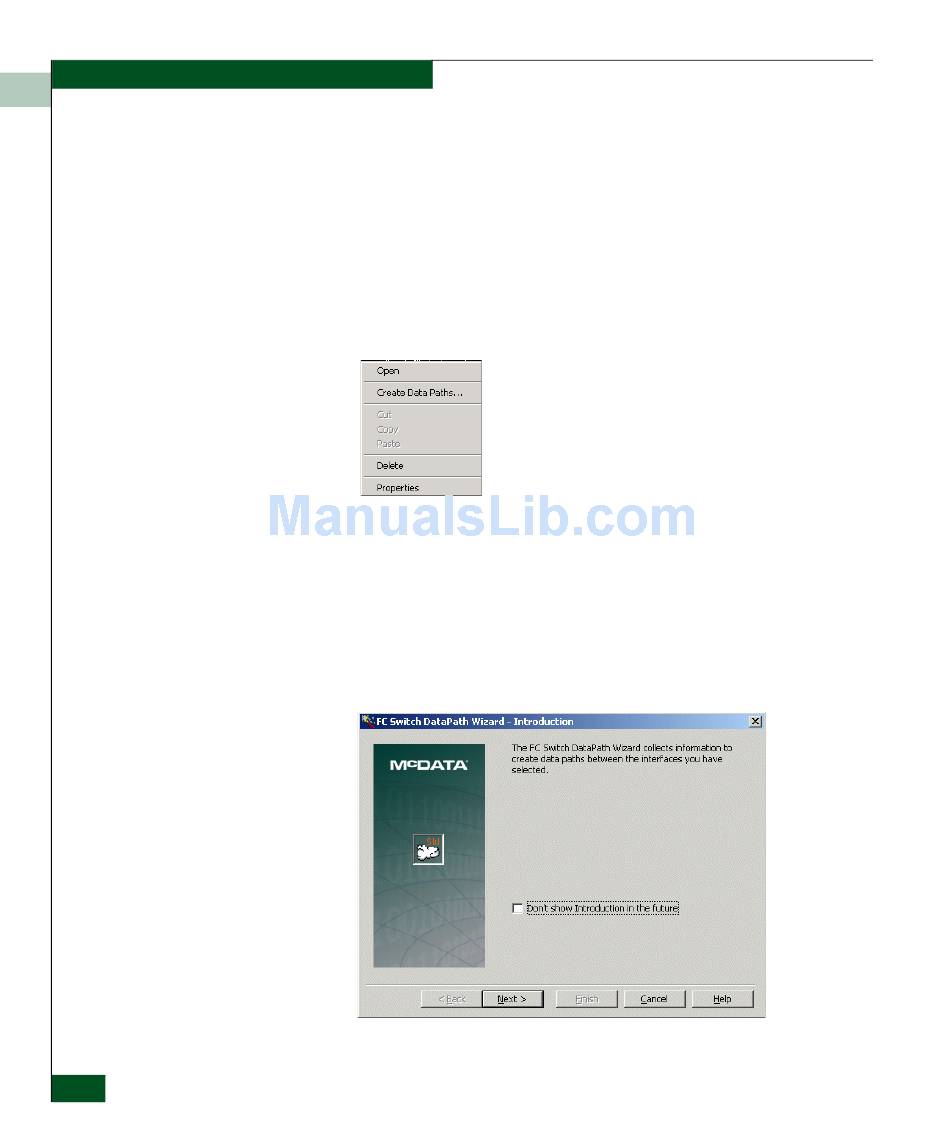

1. Right-click the Fibre Channel Switch interface 10 (the cloud icon)
on Node 10 in the Network Map.
The Create Data Path menu is displayed.
2. Select Create Data Paths. "Marching ants" outline the Fibre
Channel Switch interface to indicate you are in the Create Data
Paths mode.
3. Double-click the Fibre Channel Switch interface 20 (the cloud
icon) on Node 20 in the Network Map.
The FC Switch DataPath Wizard - Introduction dialog is
displayed.
4. Click the Next button.
