10. Select the type of Fibre Channel interface you are configuring and
the quantity in the drop-down menu:
— Edge-HF-010 Fibre Channel (1 Gig FC), use this option for
FC/SCSI Tape Pipelining (N or NL_port) configurations only.
— Edge-HF-020 Fibre Channel Enhanced Performance (2 Gig
FC), use this option for E_port or F_port configurations.
If you are configuring a 2x1 or 2x2 implementation, enter a 2 in
the quantity field.
11. Click Next.

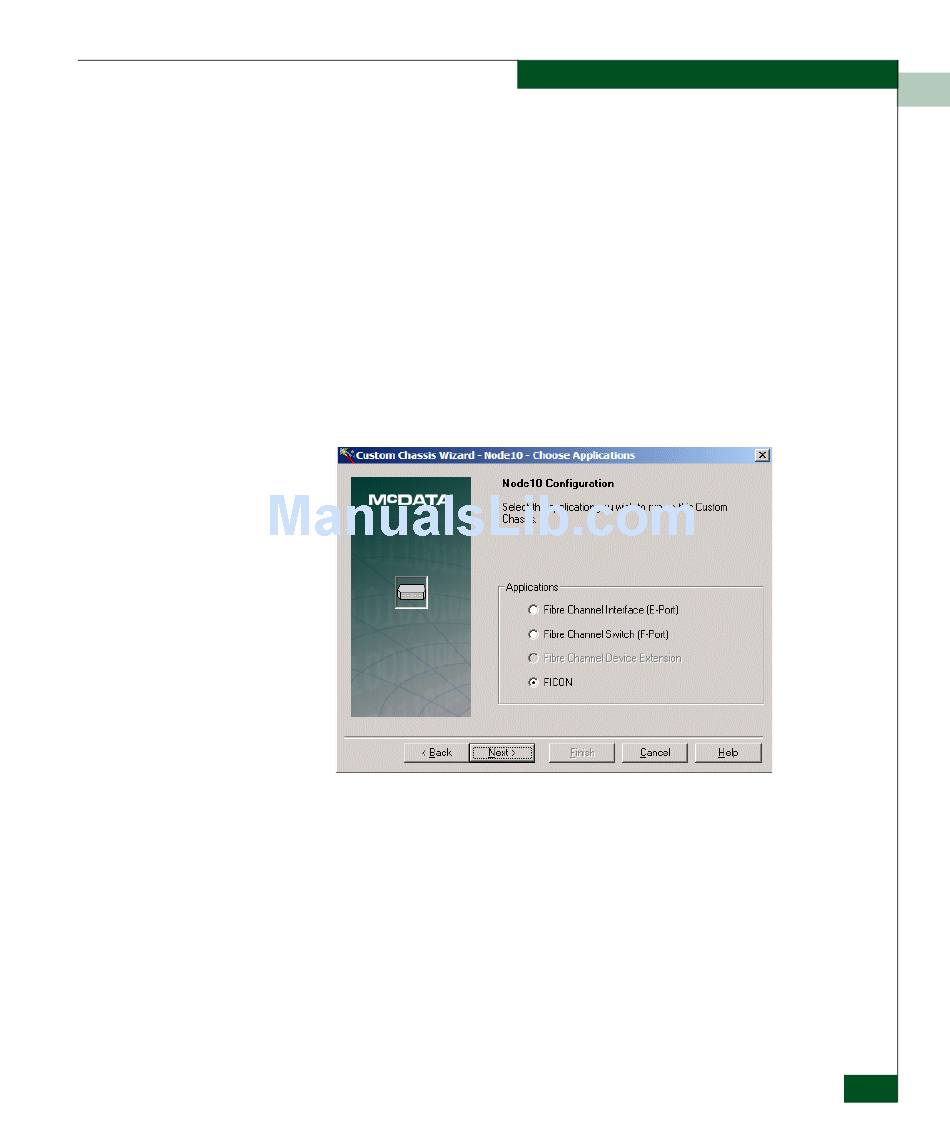

The Custom Chassis Wizard - Node10 - Choose Applications
screen appears.
12. Select the Fibre Channel interface type:
— Fibre Channel Interface (E-port) for all E_port extension
configurations (FCBB card)
— Fibre Channel Switch (F_port) for all F_port (FCSW)
application configurations
— Fibre Channel Device Extension for all FC/SCSI Tape
Pipelining configurations (FCXL2 card)
— FICON for all FICON configurations (FCBB card) Note:
Valid on Edge 3.1.2 and higher only.
13. Click Next.
