McDATA ULTRANETTM EDGE STORAGE ROUTER 3000 User Manual page 404

Update UltraNet ConfigManager with the Manual Configurations
UltraNet™ Edge Storage Router 3000 User Guide
H-4

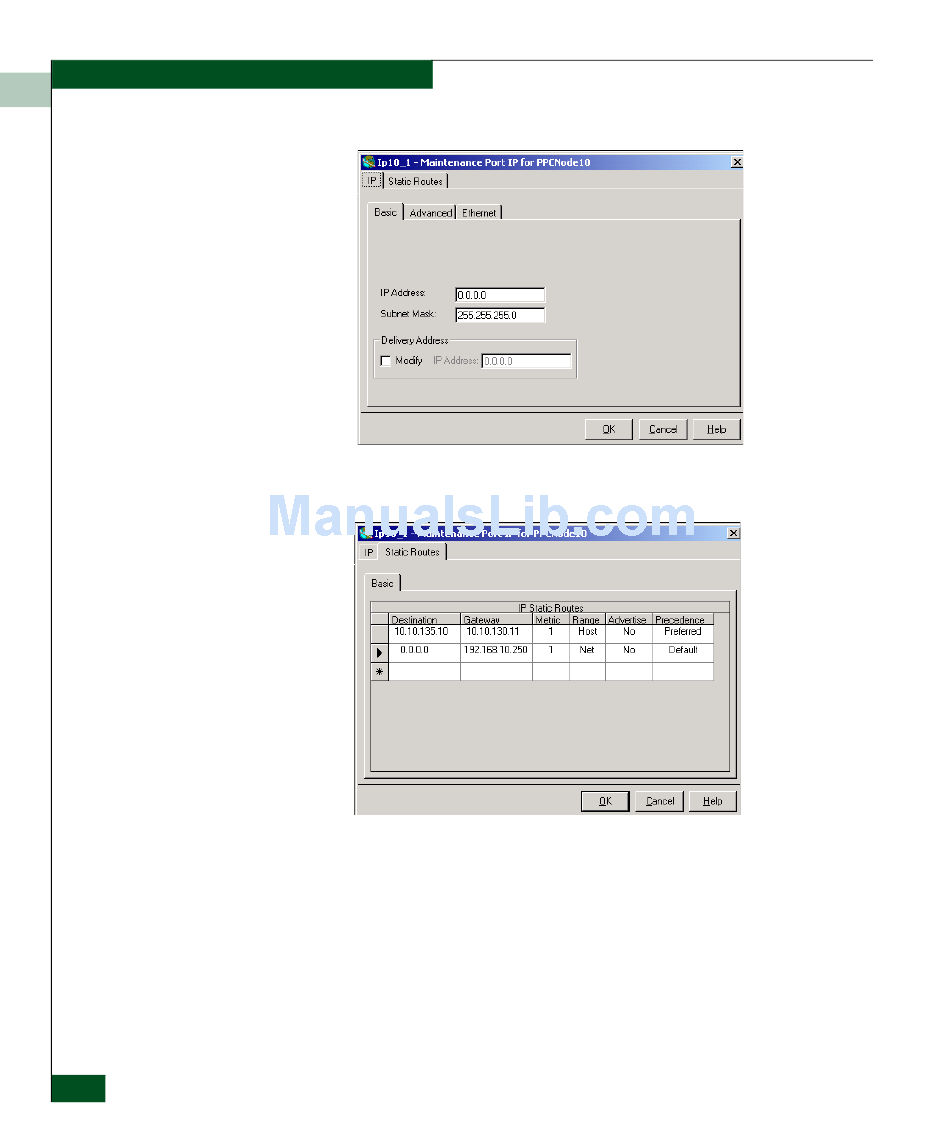

4. Click the Static Routes tab to set the Default Gateway for the
Maintenance Port IP.
5. Click inside the Gateway field and enter the Gateway address for
the Maintenance Port IP.
6. Change the Precedence field from Preferred to Default.
The first entry is the static route from the UltraNet Edge 3000
WAN interface to the WAN router interface acting as the default
gateway.
7. Click OK to save the configuration.
