McDATA ULTRANETTM EDGE STORAGE ROUTER 3000 User Manual page 103

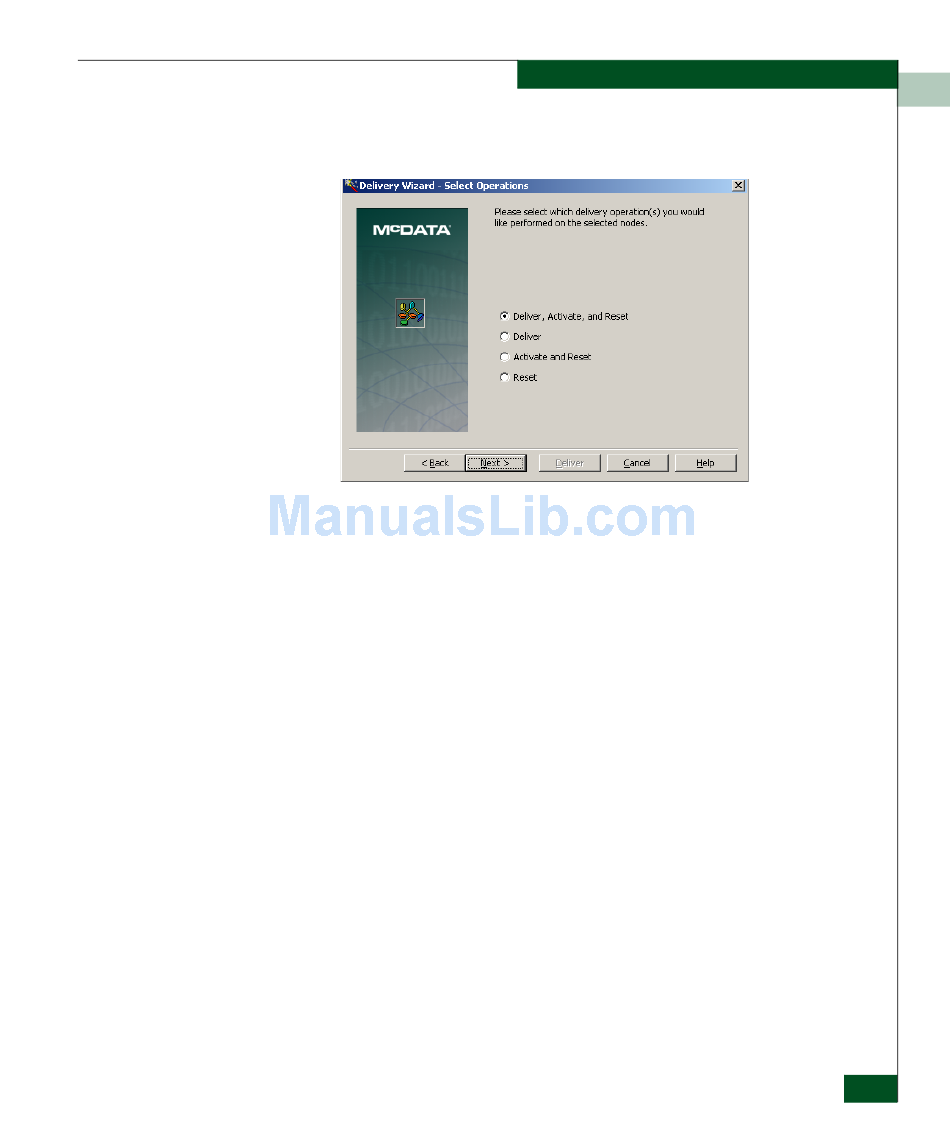

The Delivery Wizard - Select Operations screen appears.
4. Select the delivery option you would like to perform on the
selected node(s) and then click Next.
— Deliver, Activate, and Reset - delivers the current network
map to the node(s), activates the configuration by copying it
into the active directory and then resets the node(s)
— Deliver - delivers the network map (configuration) to an
offline directory and is saved for activation at a later time
— Activate and Reset - activates a network map that has
previously been delivered to an offline directory by copying
the configuration into the active directory and then resets the
node(s)
— Reset - resets the node(s)
The Delivery Wizard - Deliver screen appears.
Configuring an E_Port Extension over an Ethernet WAN
Delivering the Configured Network
5
5-27
