PCWS Eclipse Hardware Configuration
What's Inside?

System Board Connectors

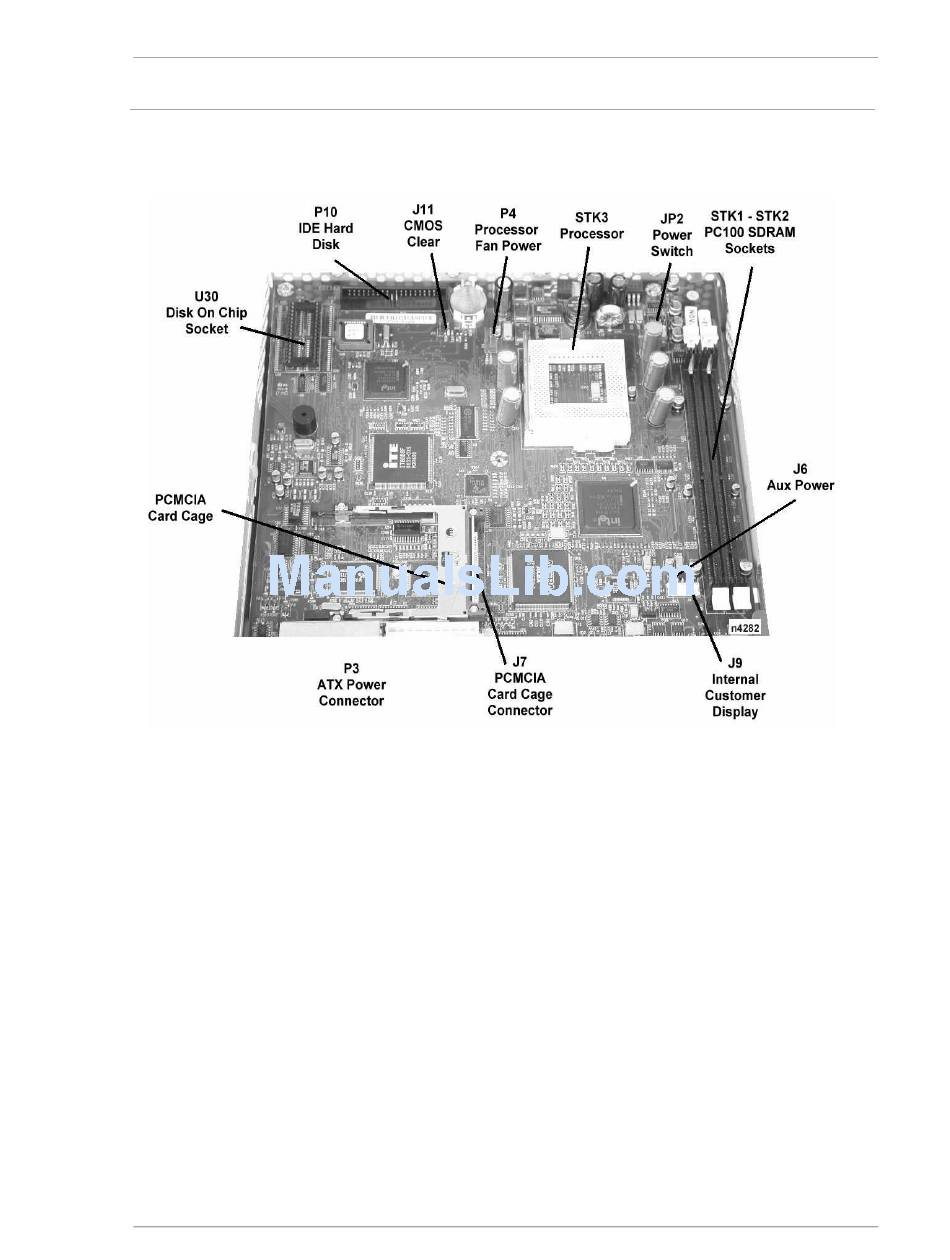

Figure 3-14, below shows the Eclipse System Board connectors.
Figure 3-14: Eclipse System Board Connectors
Details on removing and replacing internal components including the Power Supply,
Hard Disk, Customer Display, Processor, Disk On Chip, and DIMMs can be found in
the remaining pages of this chapter.
PCWS Eclipse Setup Guide
3-13
