What Is The Eclipse Workstation?

The System

The System
The following section describes the PCWS Eclipse Workstation and components. The
Eclipse will be available with two LCD/Touchscreen Head selections.

Eclipse System Unit

The Eclipse System Unit, shown in Figure 1-1, consists of a plastic cover and pedestal
which fits over a metal chassis.
The system unit contains the power supply, system board, and optionally, a single
desktop style IDE hard disk and 2x20 customer display. All input/output connectors
are accessible from the front of the unit. See Chapter 3 for more information about
hardware configuration.
The AC power switch is located under the system unit on the right side of the
workstation.
The integrated power supply replaces the external AC power brick used in previous
PCWS models. In addition, a +24V power connector mounted to the front panel
allows a single Epson U220 or TMT-88 Roll Printer to be powered from the Eclipse,
eliminating a second power brick.
1-2

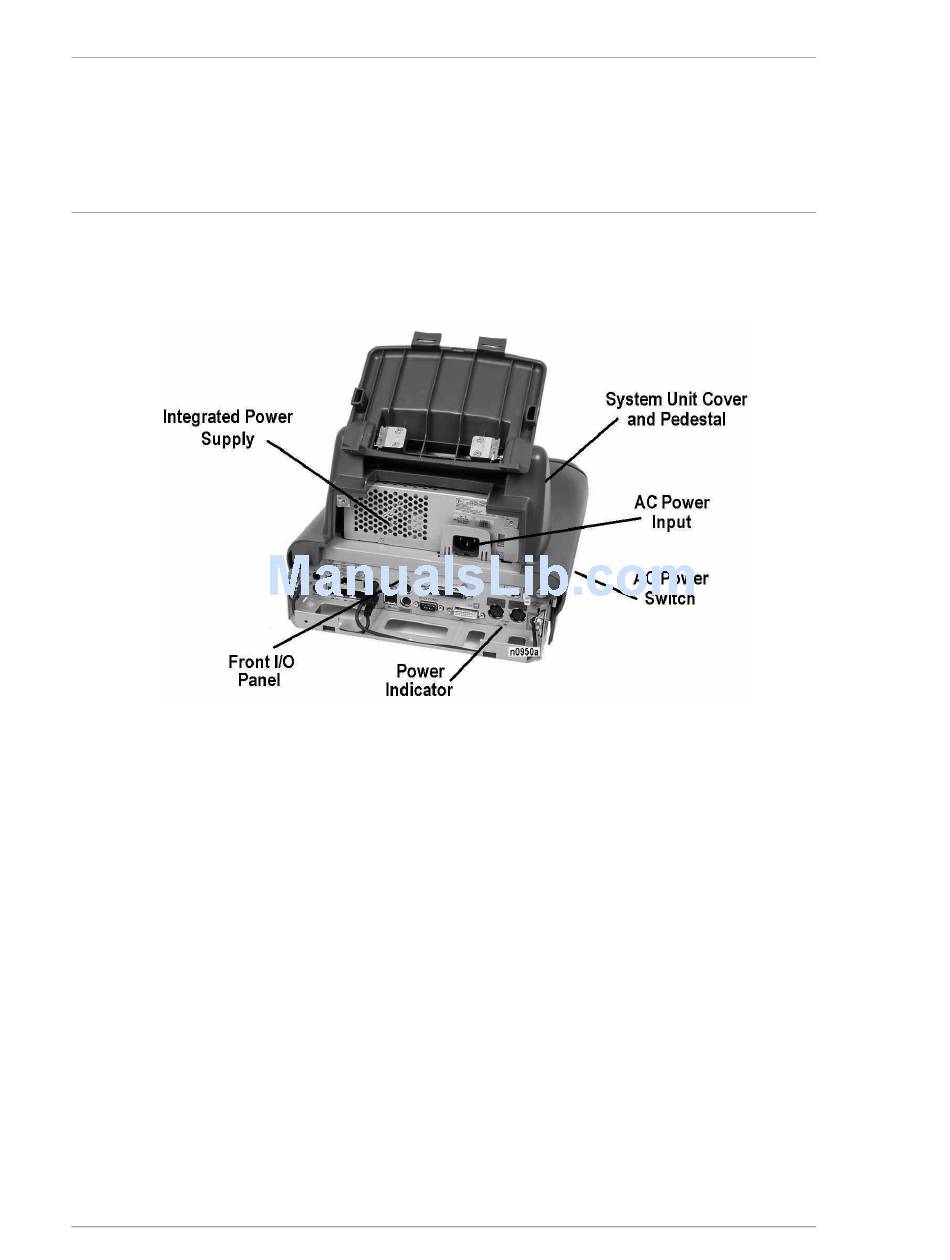

Figure 1-1: The Eclipse System Unit
PCWS Eclipse Setup Guide
