PCWS Eclipse Hardware Configuration
Re-assembling the Eclipse
5.

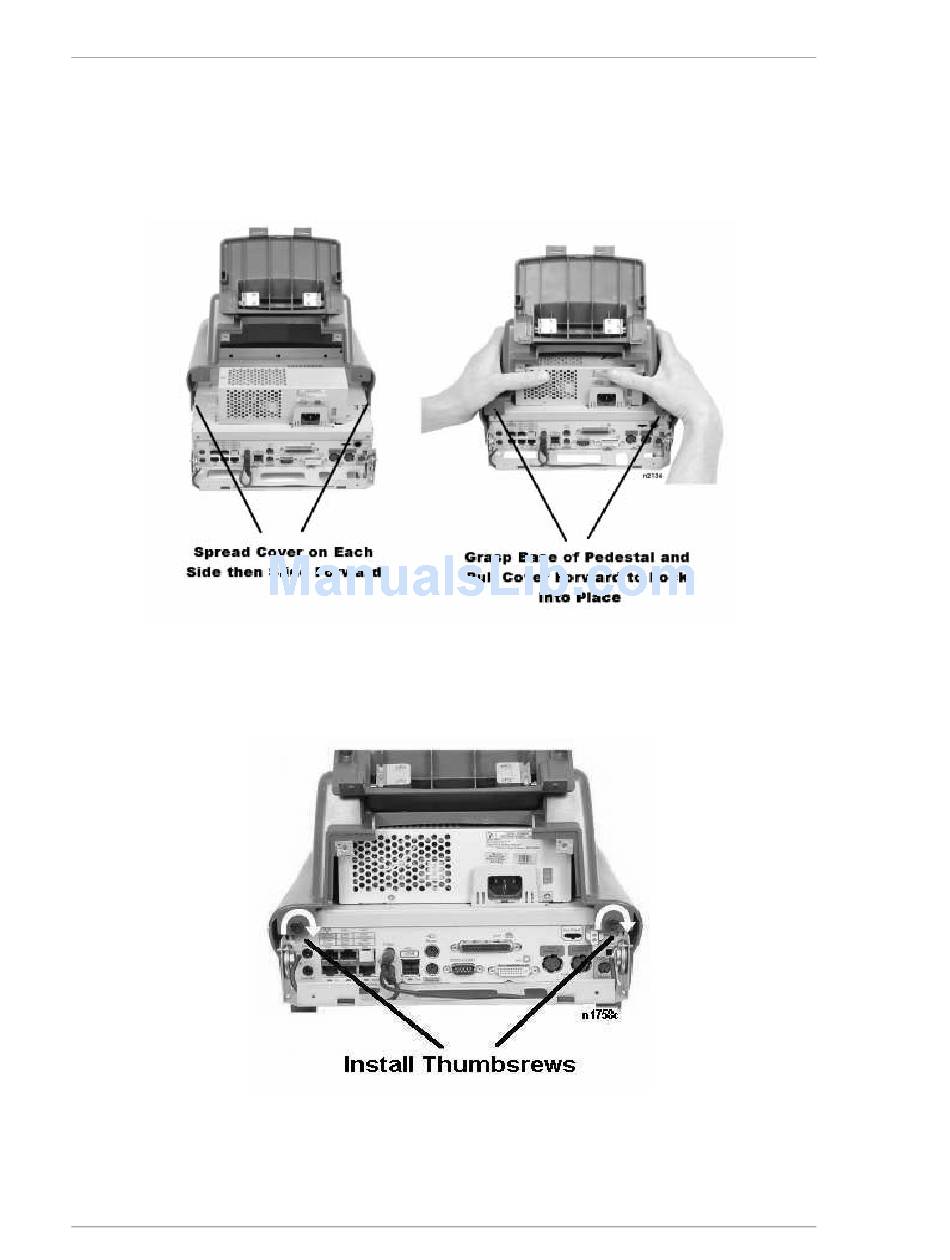

Install the System Unit plastic cover. Figure 3-52. Start from the rear of the
chassis, then slide forward. When the cover is nearly installed, grasp the power
supply and the base of the pedestal as shown to pull the cover forward and lock it
into place.
6.
Install the thumbscrews that hold the system unit cover in place. Figure 3-53.
Figure 3-53: Installing the System Unit Cover Thumbscrews
3-38
Figure 3-52: Installing the System Unit Cover
PCWS Eclipse Setup Guide
