Connector and Cable Diagrams

Hook-up Cables

Hook-up Cables
The following pages show wiring diagrams of various hook-up cables that may be
used with the Eclipse workstation.
RS232
Four cable diagrams are included, two for the LCC/RS232 port and two more for the
modular COM5 and COM6 RS232 ports.

LCC/RS232 Port

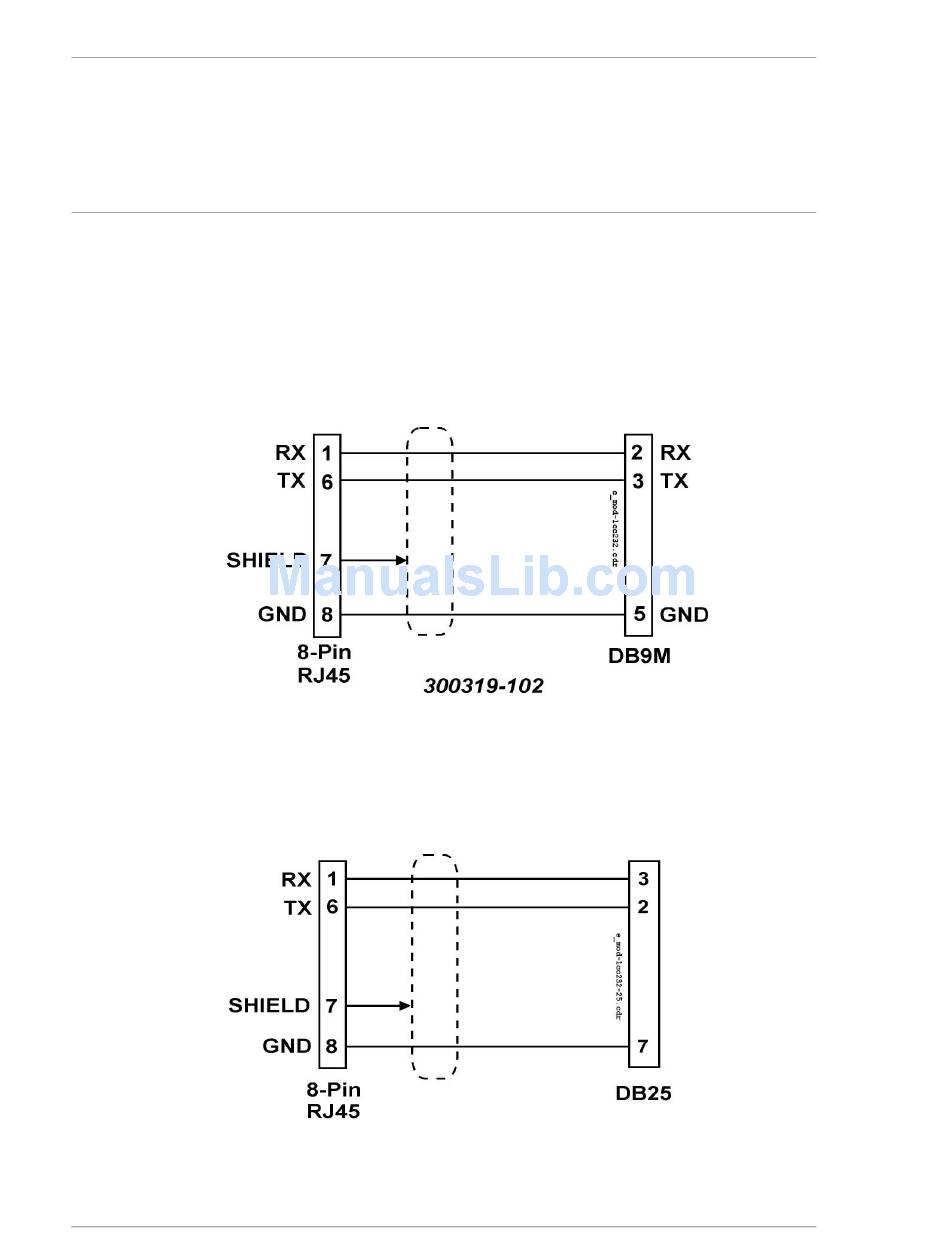

Figure B-16 shows a cable diagram that adapts the modular LCC/RS232 connector
(Figure B-3) to a standard DB9 connector. This cable is available from MICROS by
ordering P/N 300319-102.
Figure B-16: Modular LCC/RS232 to DB9 Male Connector
Figure B-17 shows a cable diagram that adapts the modular LCC/RS232 connector
(Figure B-3) to a standard DB25 connector.
Figure B-17: Modular LCC/RS232 to DB25 Connector
B-12
PCWS Eclipse Setup Guide
