Connector and Cable Diagrams
Front Panel Connectors

LCC(-)

In this configuration, used only with the 8700 application, this port is driven by the
LCC over RS422 twisted-pair cable. This configuration swaps the transmit and
receive pairs, to allow the workstation to receive information from the LCC. Figure
B-2.

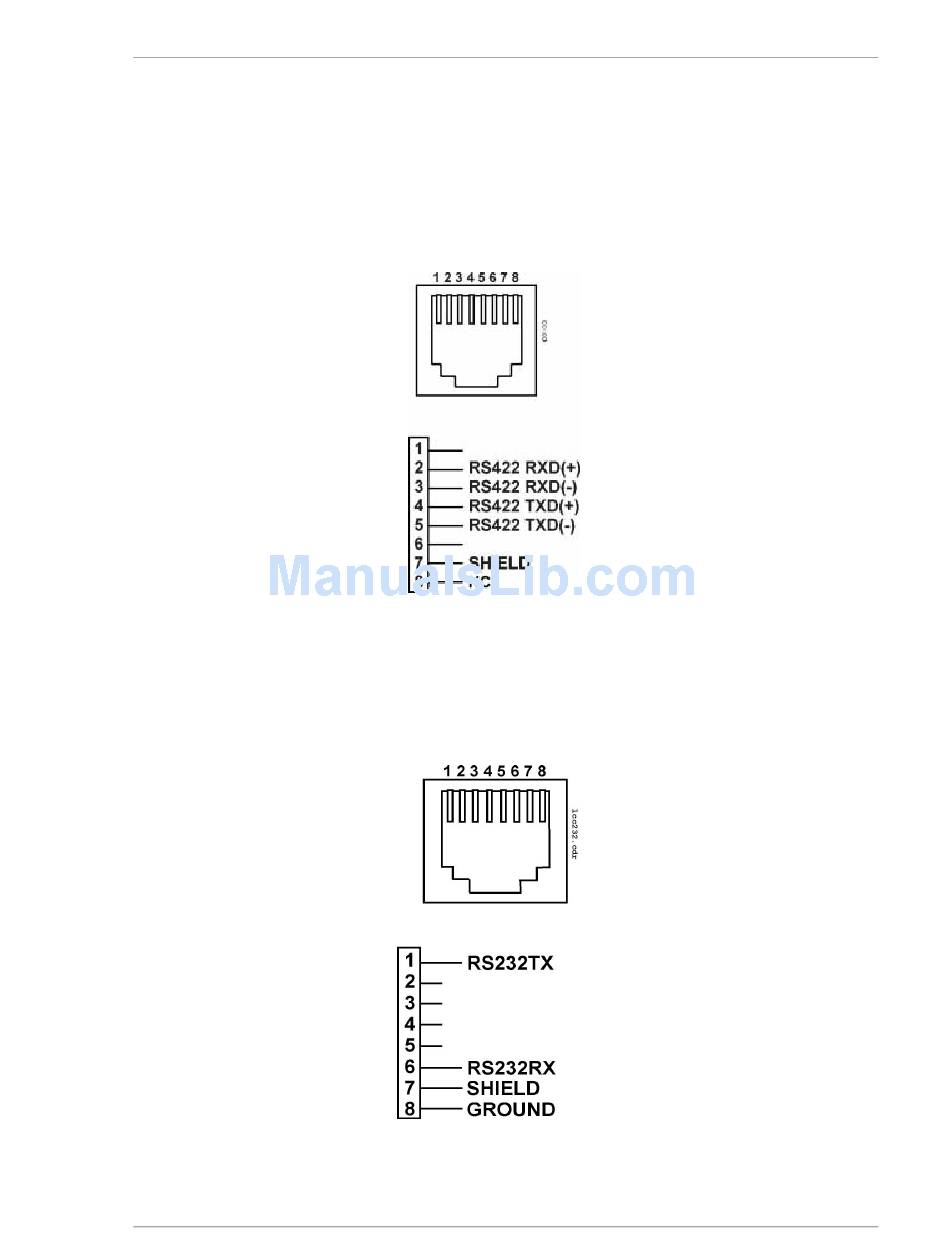

Figure B-2: LCC Connector Configured in LCC(-) mode

RS232

The LCC port can function as a basic RS232 interface using COM4 resources. This
configuration is shown in below.
Figure B-3: LCC Port Configured for RS232
PCWS Eclipse Setup Guide
B-3
