Connector and Cable Diagrams
System Board Connectors
System Board Connectors
This section details several connectors located on the Eclipse System Board.
ATX Power Connector

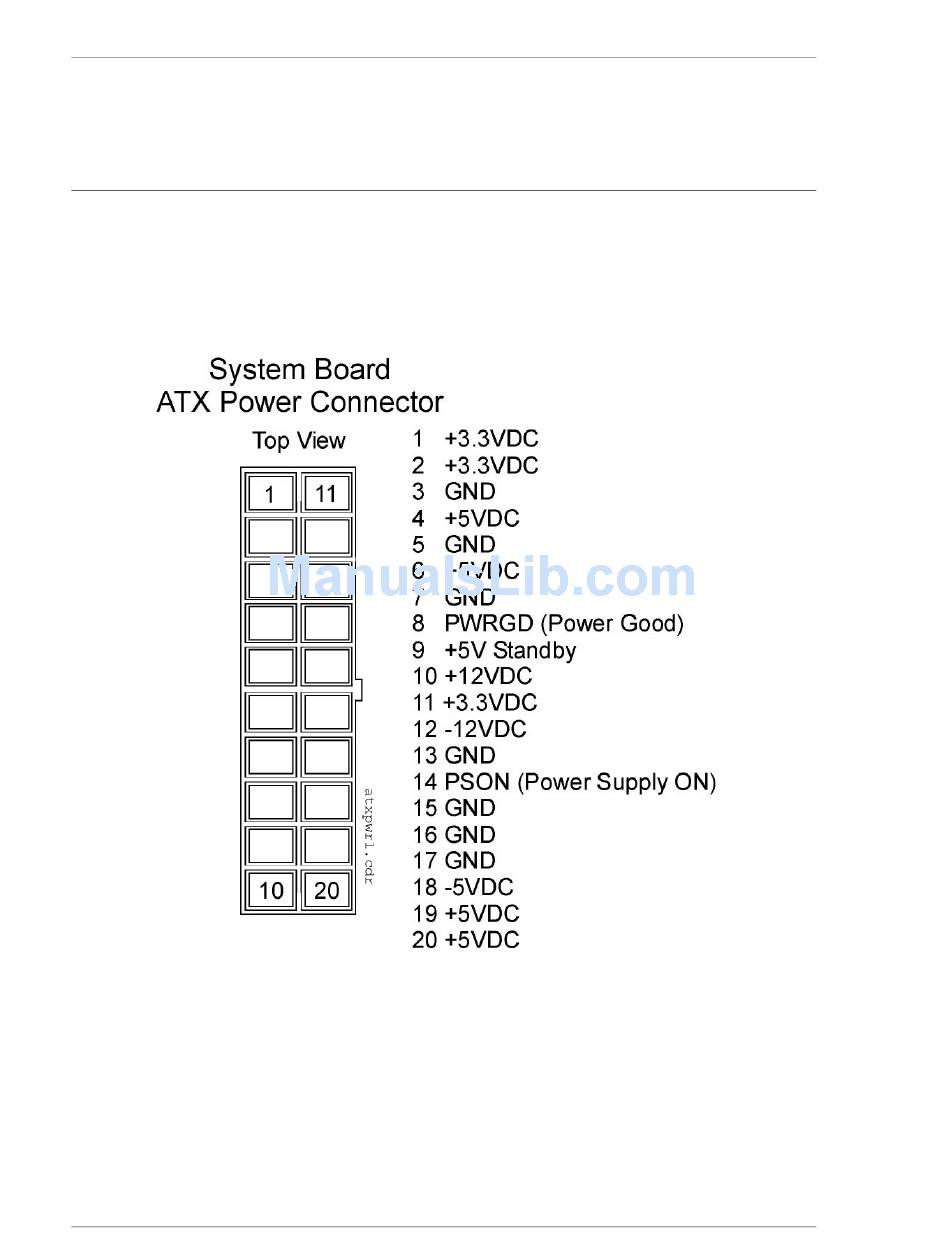

Figure B-14 shows the ATX power connector installed on the system board. To
measure voltages at this connector, be sure the male ATX power connector from the
power supply is connected and the power is turned on.
B-10
Figure B-14: ATX Power Connector Diagram
PCWS Eclipse Setup Guide
