PCWS Eclipse Hardware Configuration
Remove/Replace Power Supply
Remove/Replace Power Supply
1.
Refer to page 3-2 to remove the cover if you have not done so already.
2.
If a hard disk is installed, lift the rear and remove the 4-conductor power
connector.
3.

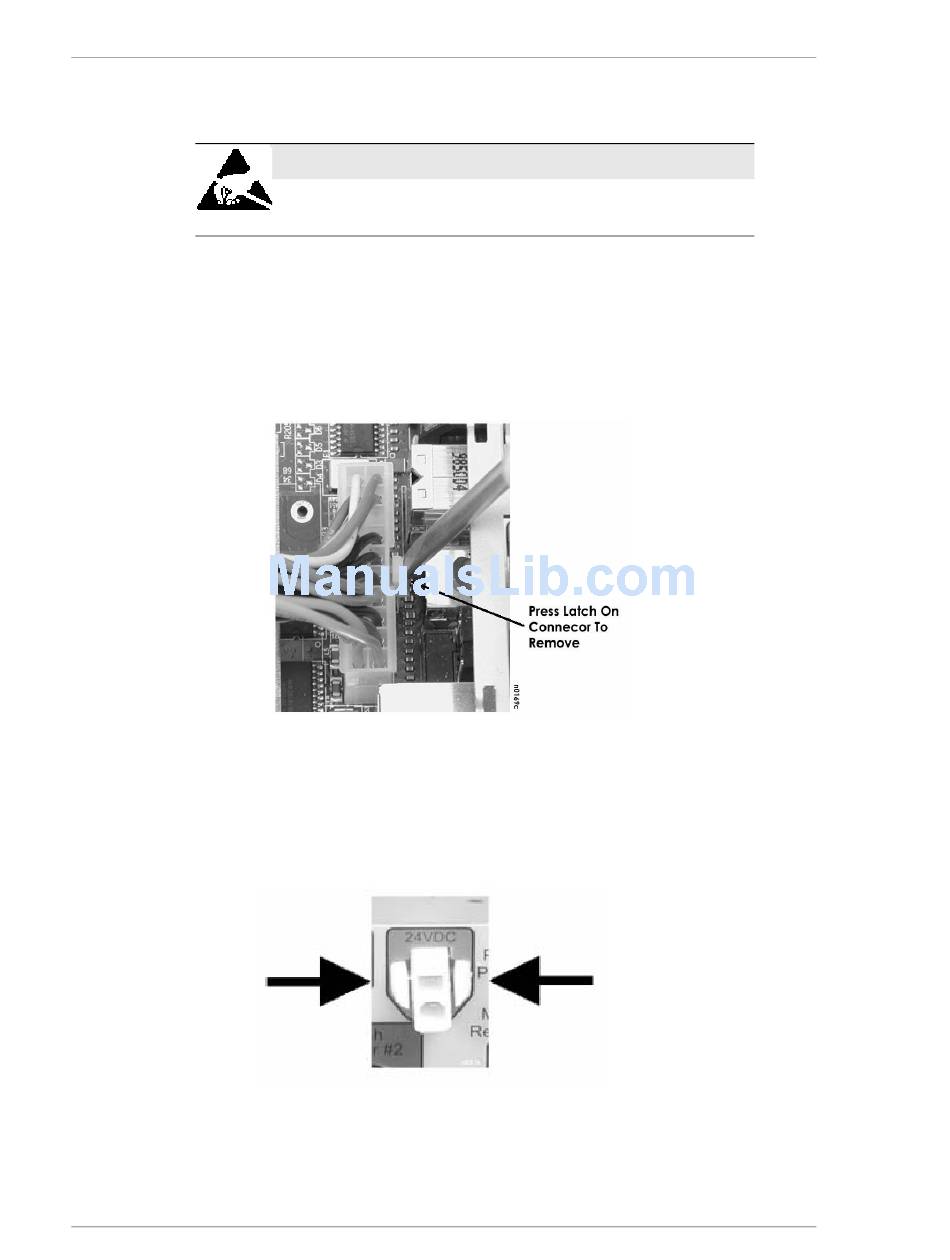

Refer to Figure 3-19 and use a small flat-blade screwdriver to release the latch on
the power connector. Pull on the connector body (not the wires) to remove it from
the system board.
Figure 3-19: Removing the System Board ATX Power Connector
4.
Remove the Printer Power connector. On some workstations, this cable will be tie
wrapped to the chassis. On later workstations, the +24V cable includes an in-line
connector. Refer to Figure 3-20 and use a pair of needle nose pliers to squeeze the
sides of the connector and remove it from the front panel.
Figure 3-20: Removing the +24V Printer Power Connector
3-16
STATIC SENSITIVE DEVICES
Always follow ESD procedures when replacing the power
supply.
PCWS Eclipse Setup Guide
