Notes:
The Pentium III 700 Mhz processor in the FC-PGA package and the Celeron 366
MHz processor in the PPGA package are no longer available and included for
reference only.
Only the Intel Processor selections indicated in the table have been certified for
use in the Eclipse across the stated operating temperatures, found in Chapter 1.
Use other processor/heat sink combinations at your own risk.
The Intel i810 Chipset front side bus (FSB) is limited to 100MHz. Processors that
require a 133MHz FSB are not supported.
Pentium III and Celeron processors based on the Tualatin core and the FC-PGA2
package are not supported by the Eclipse system board.
Procedure:
1.
Refer to page 3-2 to remove the System Unit cover if you have not done so
already.
2.
Figure 3-34. Loosen the screw that holds the hard drive bracket in place. Lift the
bracket up just enough to remove the fan power connector from P4, a 3-Pin
connector located to the left of the processor socket.

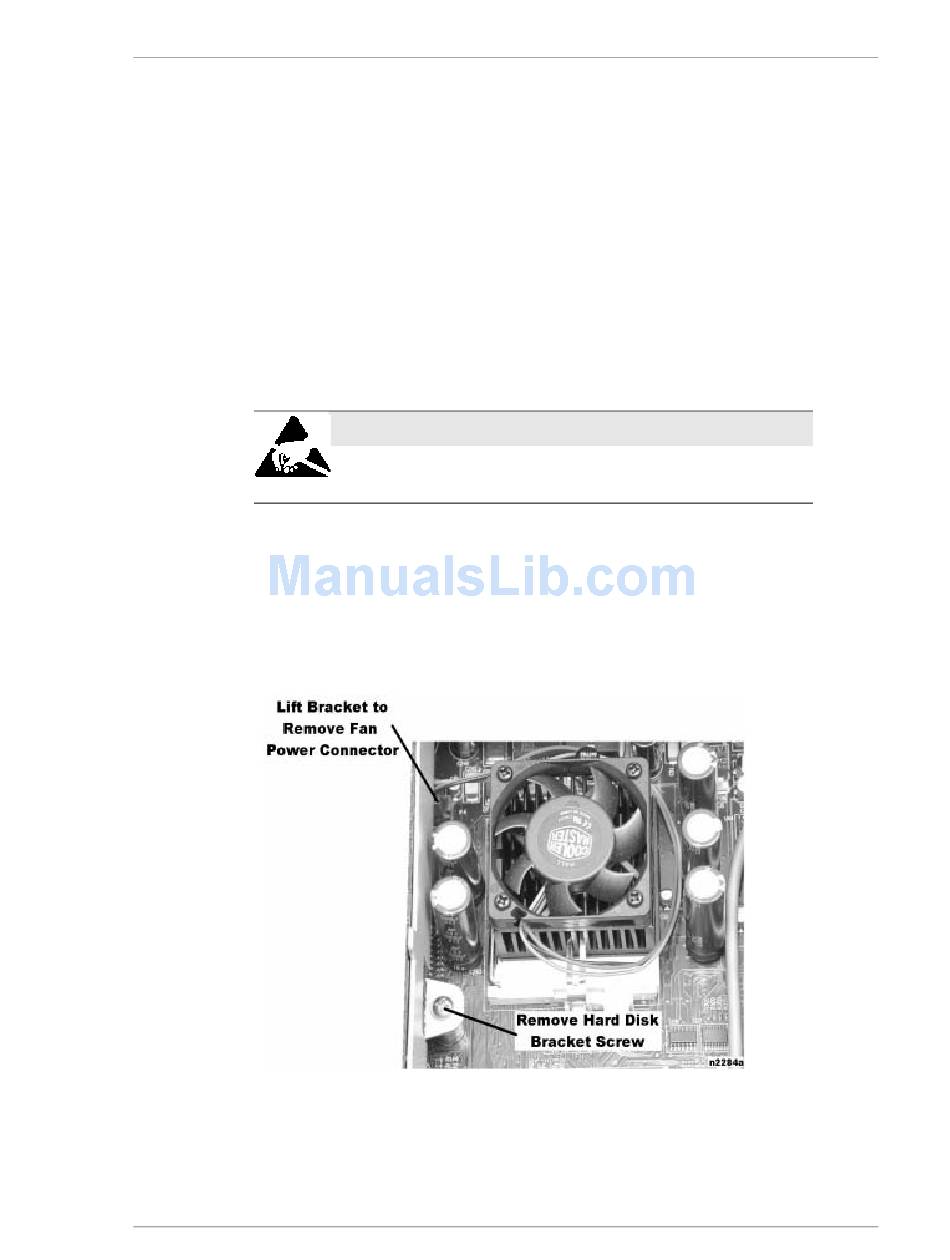

Figure 3-34: Removing the Fan Connector and Heatsink
PCWS Eclipse Setup Guide
STATIC SENSITIVE DEVICES:
Always follow ESD procedures when removing or installing
the processor.
PCWS Eclipse Hardware Configuration
Remove/Replace the System Processor
3-25
