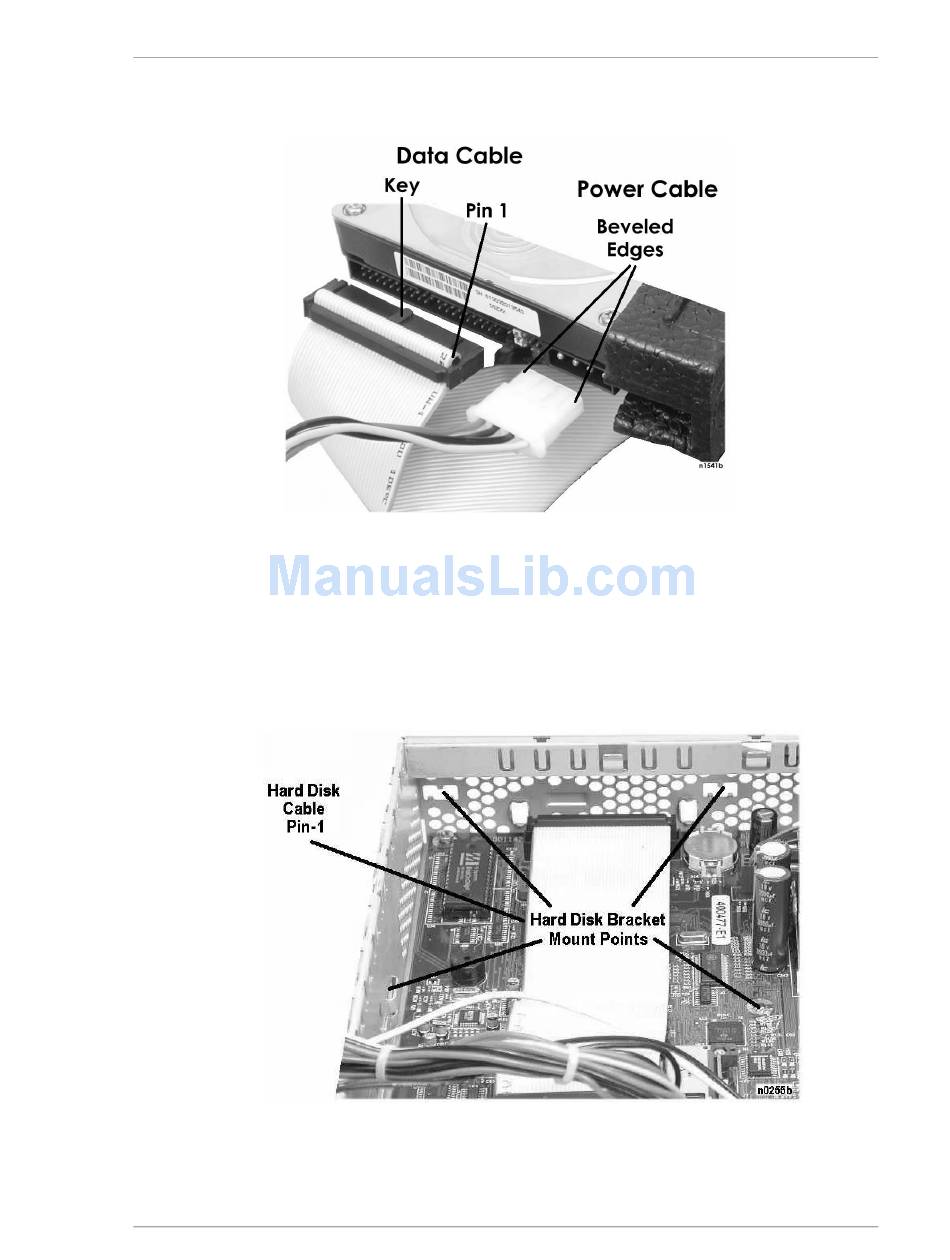

Figure 3-24: Installing the Hard Disk Data and Power Cables
7.
Install the foam ears on the hard disk.
8.
Place the hard disk in the bracket.
9.
To close the System Unit cover, see page 3-36.
10.
Figure 3-25 shows the Pin-1 orientation of the data cable and the mounting points
for the hard disk bracket or cradle, should they be required.
Figure 3-25: Installing the Hard Disk Data Cable and Bracket
