COM5 and COM6 Modular Connectors

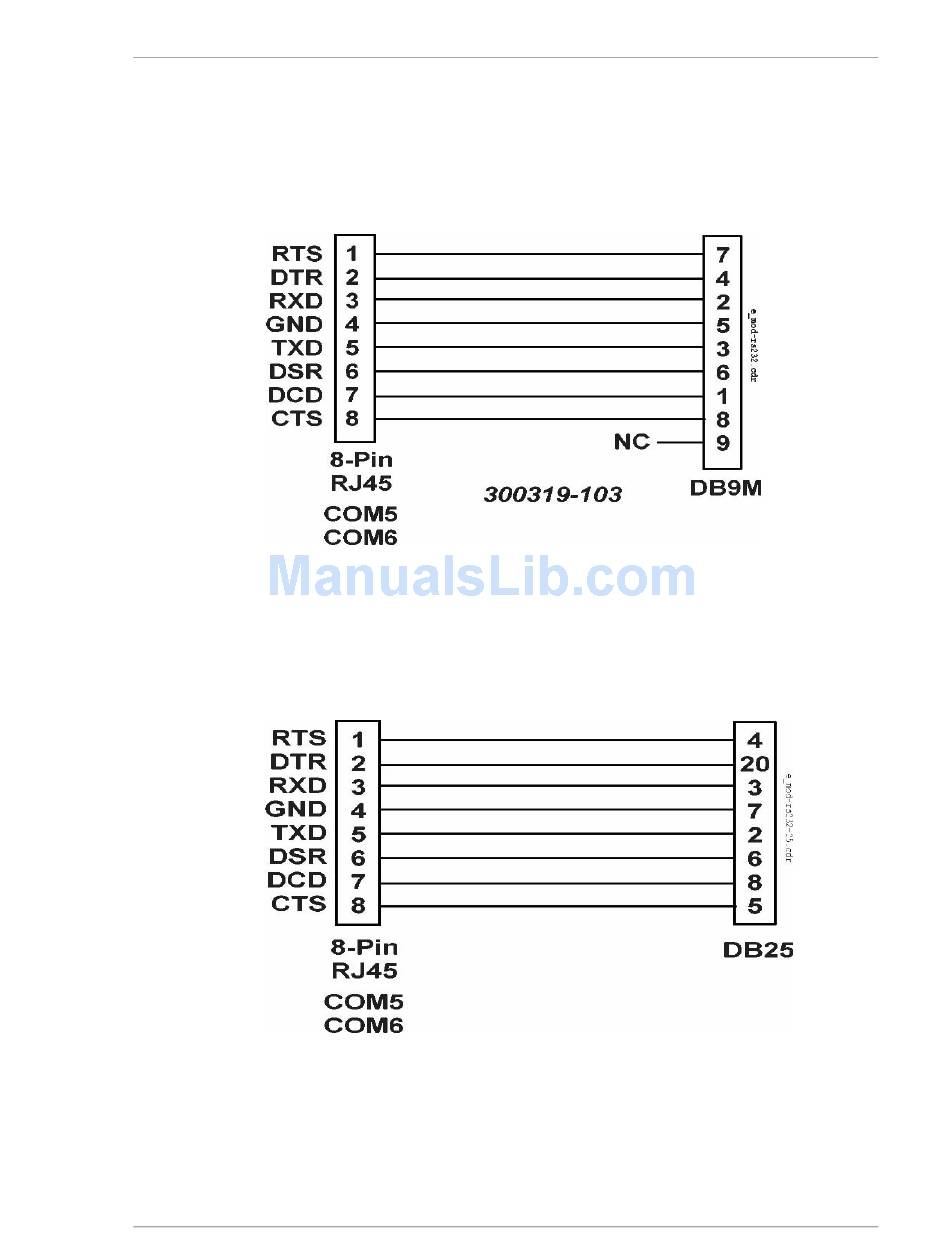

Figure B-18 shows a cable diagram that adapts the modular COM5 and COM6
connectors (Figure B-4) to a standard DB9 connector. This cable is available from
MICROS by ordering P/N 300319-103.
Figure B-18: Modular COM5/6 to DB9 Connector
Figure B-19 shows a cable diagram that adapts the modular COM5 and COM6
(Figure B-4) connectors to a standard DB25 connector.
Figure B-19: Modular COM5/6 to DB9 Connector
