What Is The Eclipse Workstation?
The System
Eclipse LCD/Touchscreen Head
The PCWS Eclipse is now available with two display configurations. The standard
display is based on a 12.1" TFT LCD Panel, and a new optional display is available,
based on a 15" TFT LCD Panel. Each component is detailed below.
The 12.1" LCD/Touchscreen Head
The 12.1" LCD/Touchscreen Head, shown in Figure 1-2, contains an 800x600 TFT
LCD panel coupled to a Elo TouchSystems 5-wire resistive touchscreen.

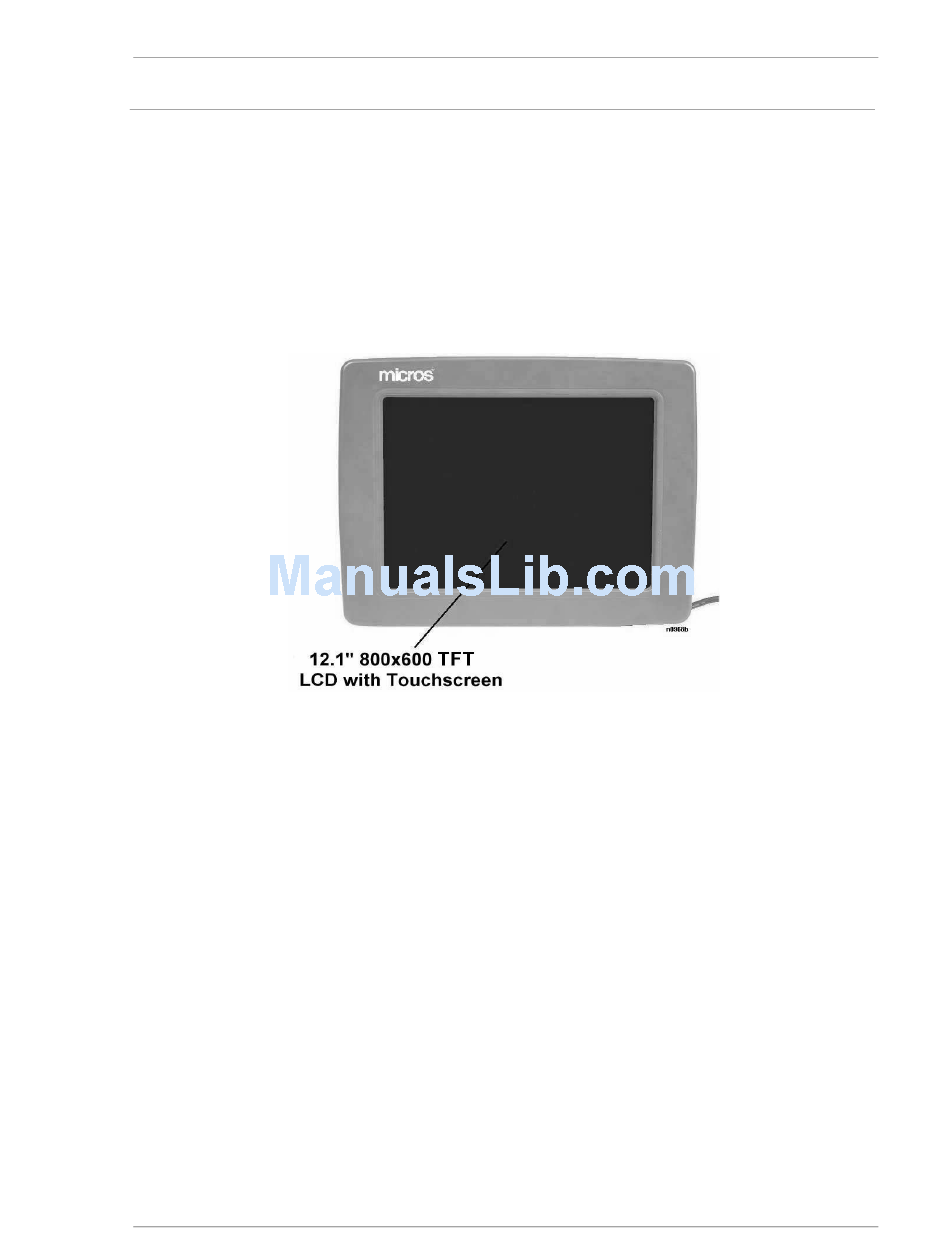

Figure 1-2: The Eclipse 12.1" LCD/Touchscreen Head
The 12.1" LCD/Touchscreen Head is modular, attached to the pedestal with
thumbscrews.
The Eclipse front panel DVI connector supplies all LCD, touchscreen, backlight
control and data signals as well as +12V to the LCD/Touchscreen Head. Within the
head, a single circuit board controls the LCD, Touchscreen, and Contrast/Backlight
interface circuitry.
See Chapter 4 for more information about the 12.1" LCD/Touchscreen head
configuration.
PCWS Eclipse Setup Guide
1-3
