Eclipse LCD/Touchscreen Head Configuration

Installing the Interface Board Shield

Installing the Interface Board Shield
1. Reinstall the Interface Board shield. Follow the numbered steps shown in Figure
4-12, below.
2. Reinstall the Interface Board Cables including the strain relief on the DVI cable.
On some units, a tie wrap may be required to strain relief the display cable.
3. Reinstall the LCD Head Cover.
4-16

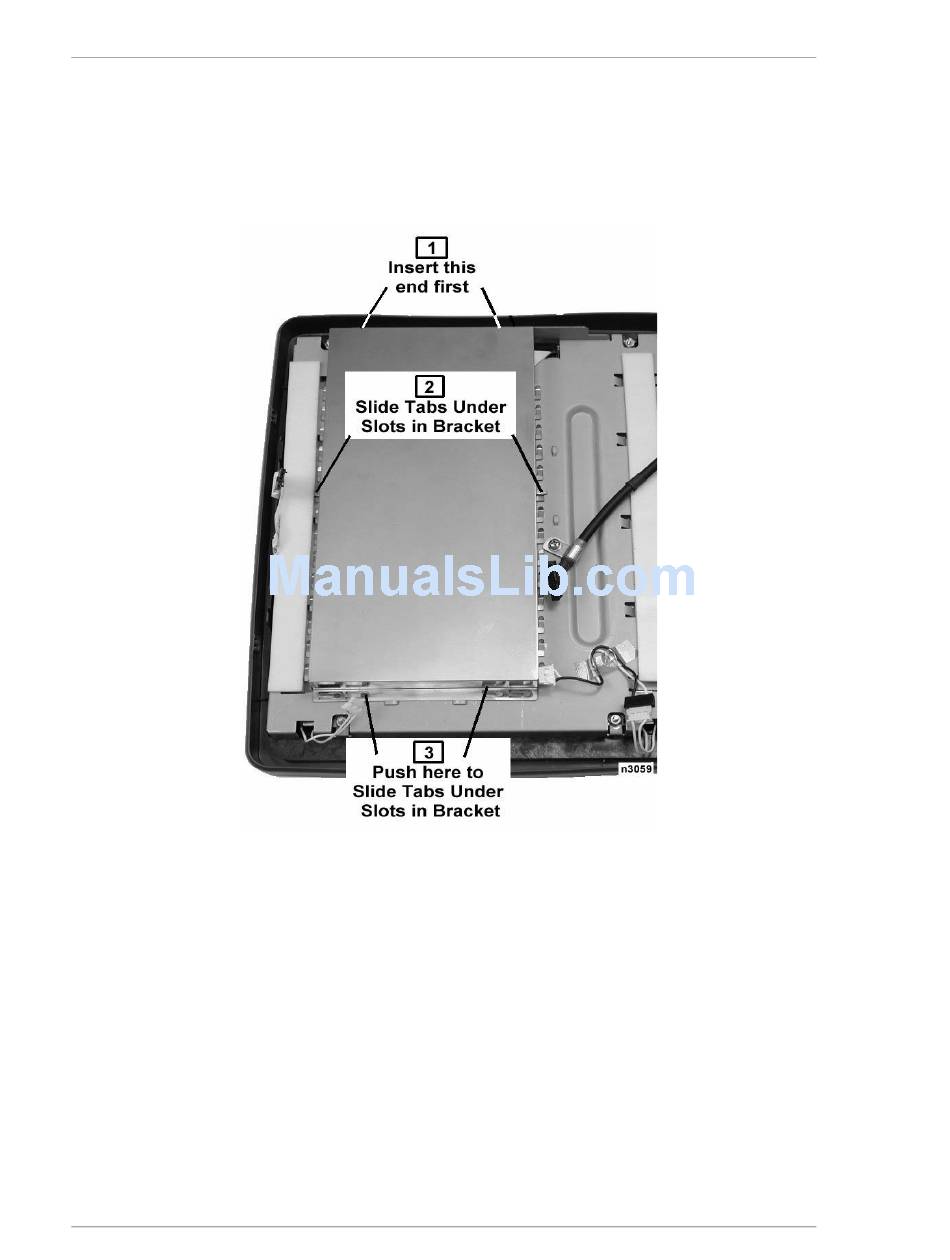

Figure 4-12: Installing the Interface Board Shield
PCWS Eclipse Setup Guide
