Install the 12.1" LCD/Touchscreen
7.
Refer to Figure 3-54. While standing in front of the pedestal, place the Head onto
the pedestal, then let it slide down to lock in place.

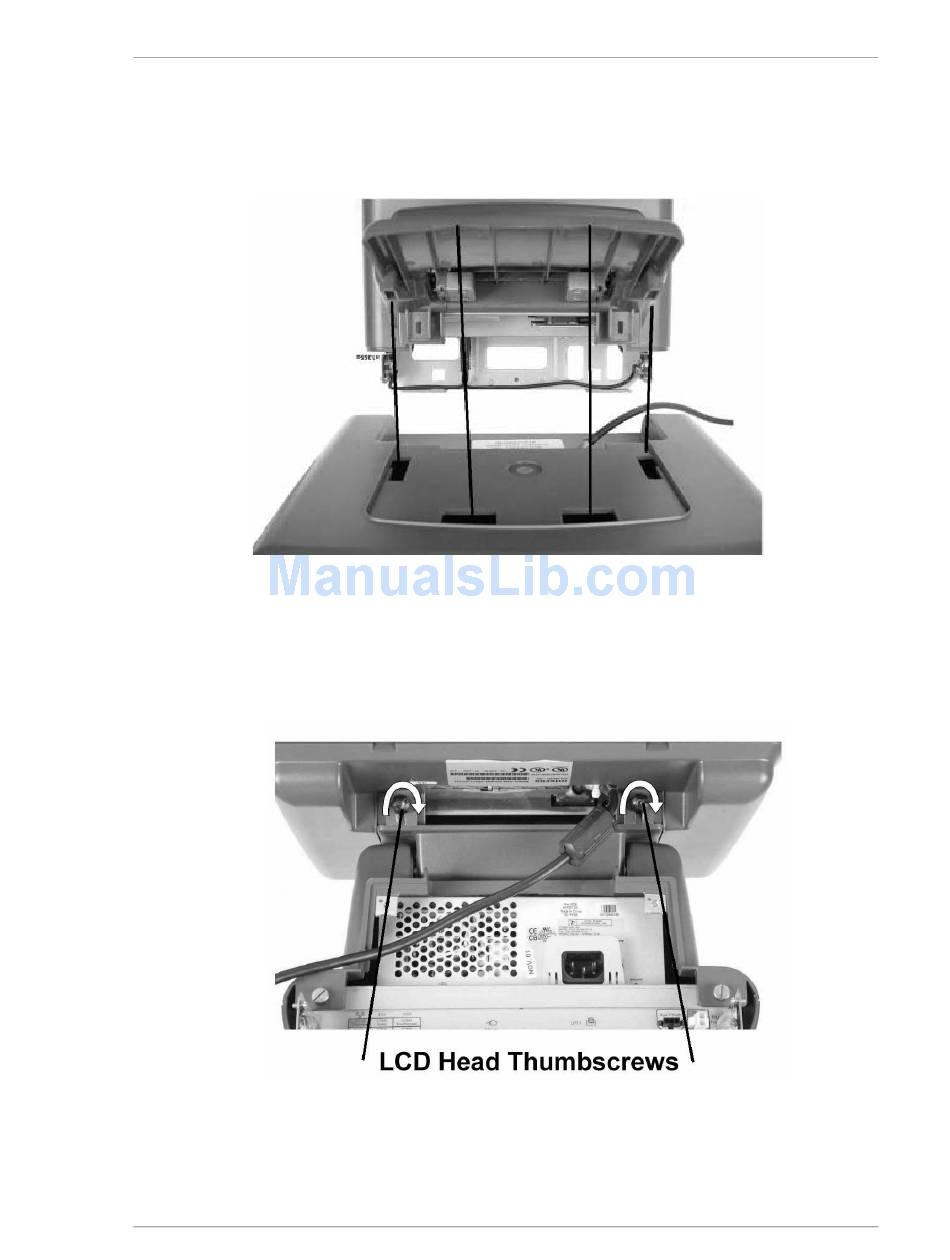

Figure 3-54: Attaching the LCD/Touchscreen Head to the Pedestal
8.
Fasten the LCD/Touchscreen Head to the pedestal with the thumbscrews
provided. Figure 3-55.
Figure 3-55: Securing the LCD/Touchscreen Head to the Pedestal
This procedure continues on Page 3-41.
