Remote Customer Display Connector

This port is capable of driving a remote pole mounted customer display.

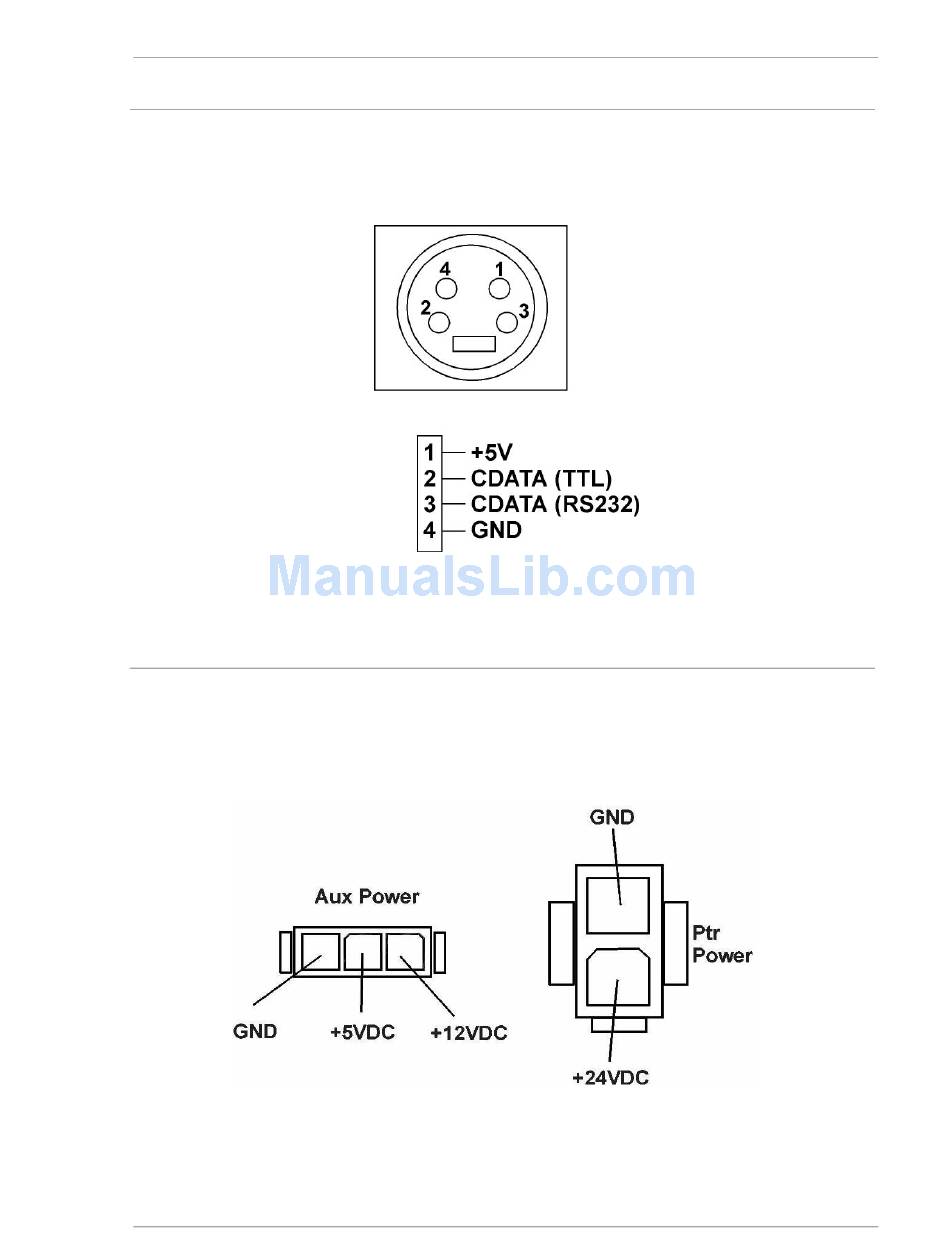

Figure B-12: Customer Display Connector Diagram

Front Panel Power Connectors

Figure B-13 shows the pin-outs of the +24V Printer Power Connector, and the Aux
Power Connector, both located on the Eclipse Front IO Panel.
Figure B-13: Front Panel Printer and Aux Power Connectors
PCWS Eclipse Setup Guide
Connector and Cable Diagrams
Front Panel Connectors
B-9
