Eclipse LCD/Touchscreen Head Configuration
The LCD/Touchscreen Interface Board
LCD/Touchscreen Interface Board -001 (TFT LCD - MicroTouch TSC)

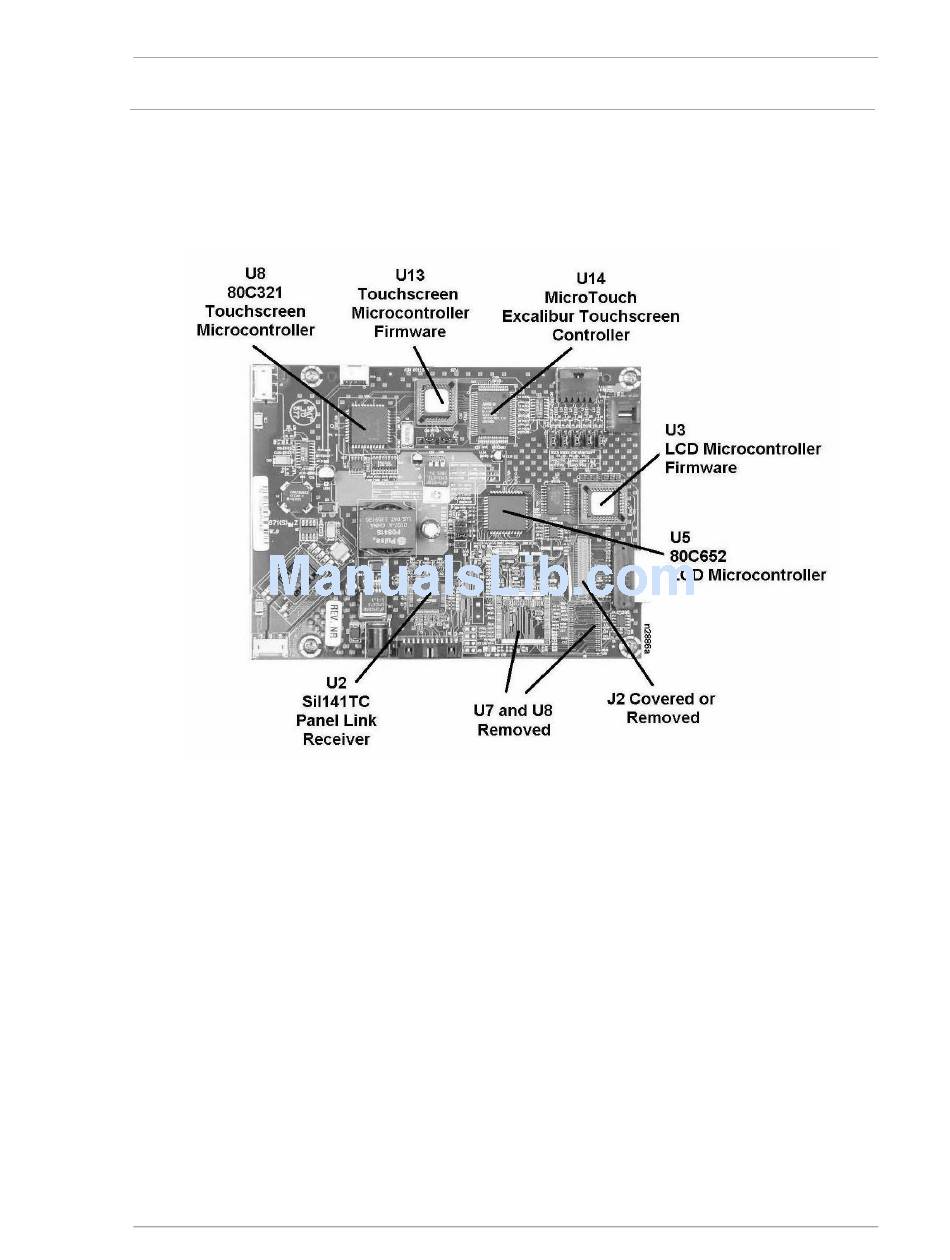

Figure 4-4 shows the component layout of the -001 board. This board supports the
TFT LCD panels shown in Figure 4-5 and requires the MicroTouch TouchWare
drivers on the Eclipse System Unit
Figure 4-4: The -001 LCD/Touchscreen Interface Board (TFT Only)
The -001 and -003 board(s) do not support DSTN LCD panels. Note that U7 and U8
(required to support DSTN LCD panels) are not installed.
PCWS Eclipse Setup Guide
4-5
