3.

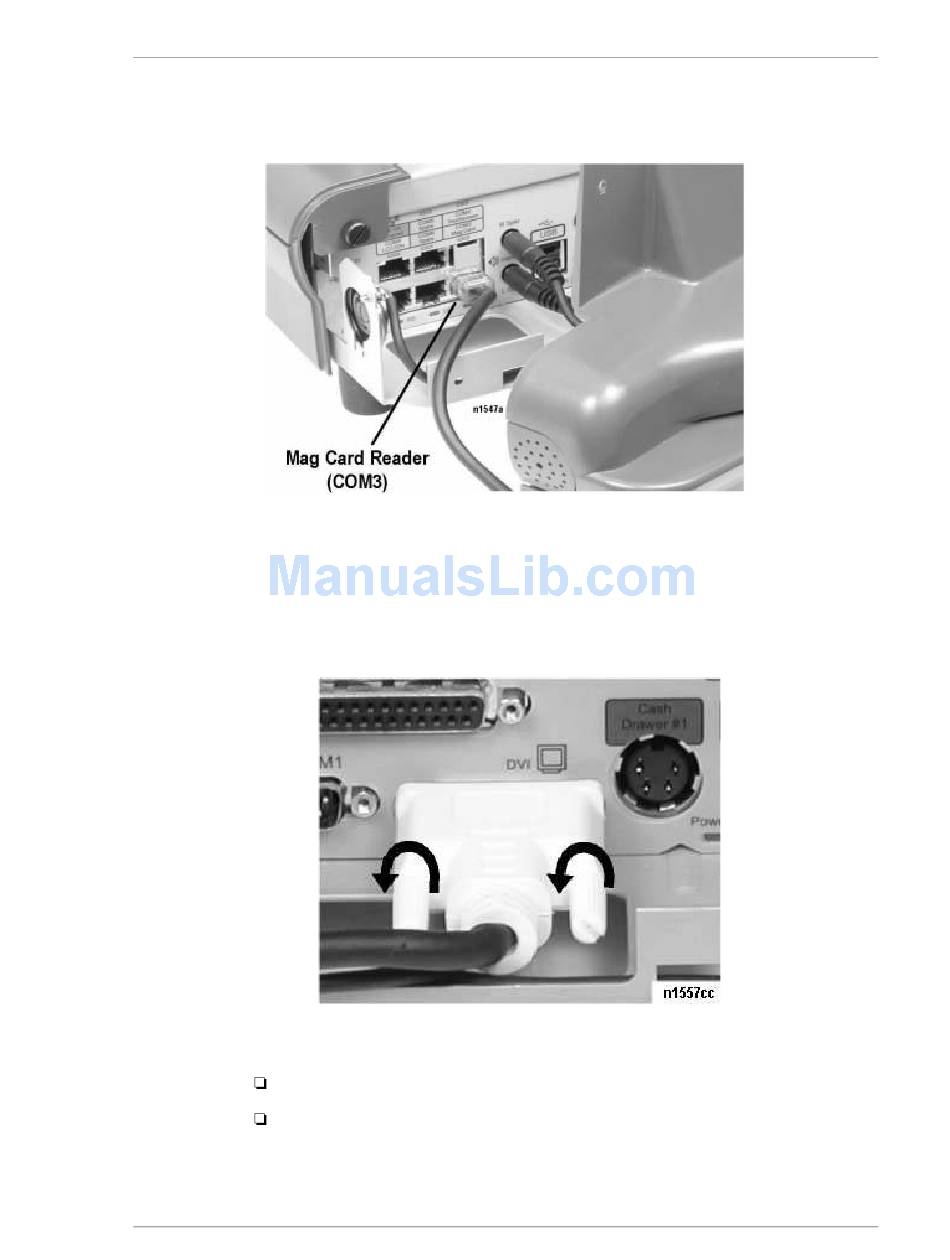

As you remove the front cover, be sure to remove the card reader cable from the
modular connector on the front panel. Figure 3-3. Set the front panel aside.
Figure 3-3: Removing the Mag Card Reader Connector
4.
Remove the AC power cable.
5.
Remove the LCD Cable from the front panel. Turn the two screws
counterclockwise as shown in Figure 3-4.
Figure 3-4: Removing the LCD/Touchscreen Head Cable
To remove the 12.1" LCD/Touchscreen Head, continue with Step 6.
To remove the 15" LCD/Touchscreen Head, proceed to Step 12 on Page 6.
PCWS Eclipse Setup Guide
PCWS Eclipse Hardware Configuration
Disassembling the Eclipse
3-3
